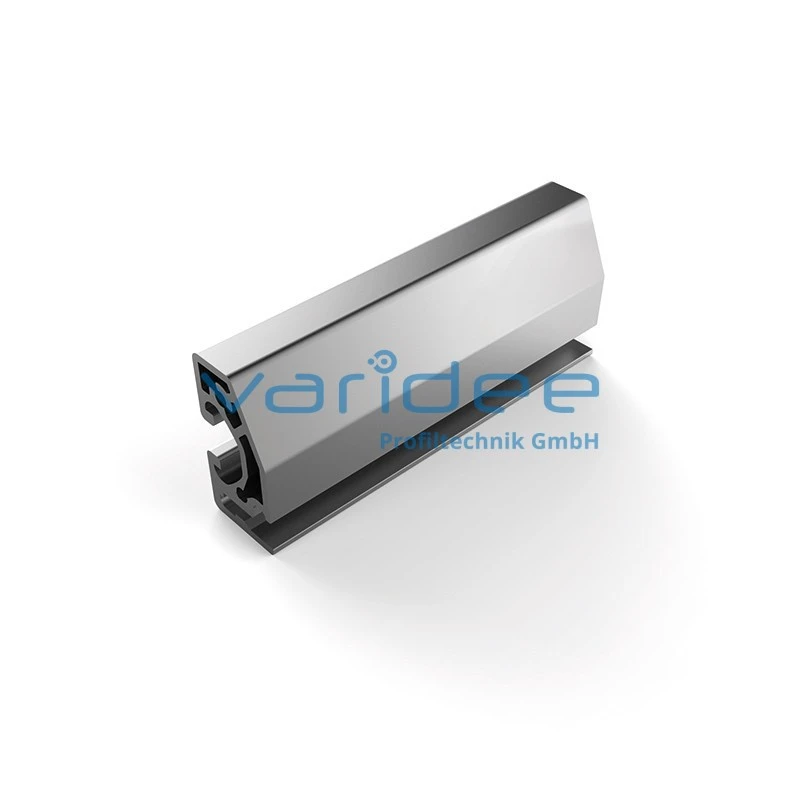

Frame profile 8 40x20, anodized (6 meters)
RP8-40x20-S6
Material: Aluminium, EN AW 6060 T66
Surface: anodized, A6, C0
Color: natural color
Length: 6000 mm
m = 0.879 kg/m
Surface: anodized, A6, C0
Color: natural color
Length: 6000 mm
m = 0.879 kg/m
The frame profile 8 40x20 enables the framing of panel elements up to a thickness of 4 mm. It is mainly used for the construction of trays. Matching frame profile corner connector sets 8 40x20 ensure quick and safe installation. Frame profiles are ideally suited for shelves on racks or for storage levels on worktables. The external profile groove 8 is used for adapting to base frames or for attaching add-on parts such as the angle locking bracket 8 80x40.
The immersion depth of the panel elements is calculated as follows:
Panel elements 2-3 mm: Outer dimension (frame) - 10 mm
Panel elements 4 mm: Outer dimension (frame) - 26 mm.
The immersion depth of the panel elements is calculated as follows:
Panel elements 2-3 mm: Outer dimension (frame) - 10 mm
Panel elements 4 mm: Outer dimension (frame) - 26 mm.
