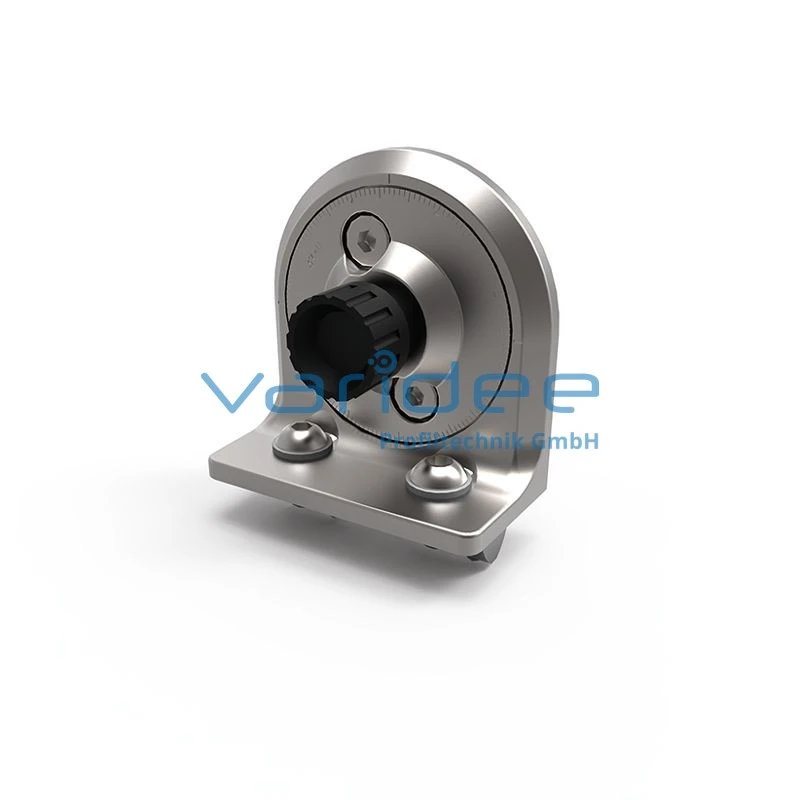

Angle locking bracket 8 80x40
WFS8-80x40
Consists of:
Angle bracket and locking washers, GD-Al, painted, white aluminum RAL 9006
Knurled screw M8x18, St, galvanized
2 Pressure springs, St
2 Button-head screws M8x18, St, galvanized
2 Cap screws M8x18, St, galvanized
3 Washers, St, galvanized
4 T-slot nuts 8 St M8, galvanized
M = 100 Nm
m = 279.0 g
Angle bracket and locking washers, GD-Al, painted, white aluminum RAL 9006
Knurled screw M8x18, St, galvanized
2 Pressure springs, St
2 Button-head screws M8x18, St, galvanized
2 Cap screws M8x18, St, galvanized
3 Washers, St, galvanized
4 T-slot nuts 8 St M8, galvanized
M = 100 Nm
m = 279.0 g
Angle locking bracket 8 80x40 is a toothened connector that allows brackets to be set in 2.5° increments. The angle locking bracket is particularly suitable for shelves at workstations. Ergonomic adjustments can be made quickly and easily with the aid of the angle locking bracket. By opening the knurled screw, the toothing is released and the connection can be moved without additional tools. If necessary, the knurled screw can be replaced by an M8x20 cap screw. The use of a screw anables a higher fastening torque, so that in combination with the toothing a form-fit angle fixing with high load capacity is achieved.
