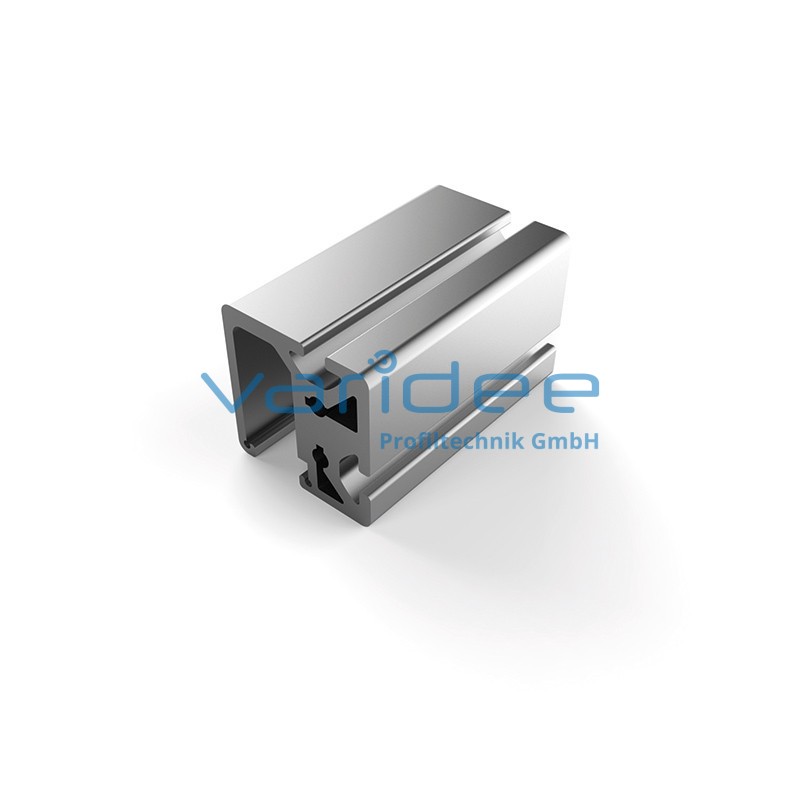

Roller profile 8 D14 (6 meters)
P8-LRP-14-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 15.48 cm2, Wx = 15.34 cm3, Wy = 14.25 cm3, Ix = 47.9 cm4, Iy = 47.92 cm4, It = 10.75 cm4
Length: 6000 mm
m = 4.18 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 15.48 cm2, Wx = 15.34 cm3, Wy = 14.25 cm3, Ix = 47.9 cm4, Iy = 47.92 cm4, It = 10.75 cm4
Length: 6000 mm
m = 4.18 kg/m
The roller profile 8 D14 is used to build bearing units 8 D14 in any length. The matching rollers, bolts and wiper and lubricating systems are offered separately. A special milling is required for the connection processing. If required, the machining drawing can be requested via info@varidee.de.
