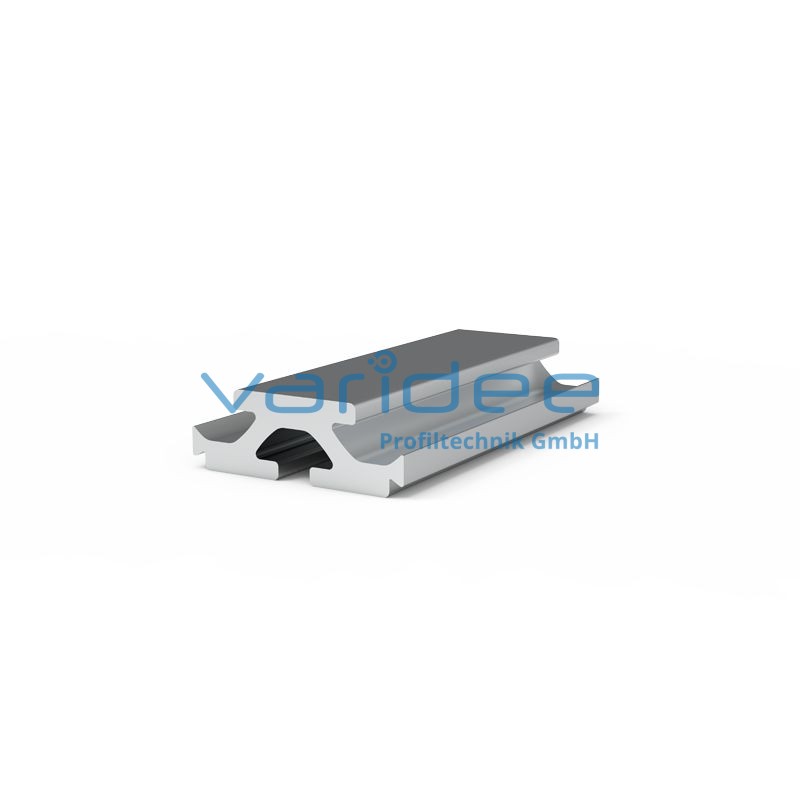

Bed plate connection profile 8 55x20 (6 meters)
PVP8-55x20-S6
Material: Al
Surface: anodized
max. tensile load groove flanks: 5000 N
A = 5.71 cm2, Wx = 1.98 cm3, Wy = 4.1 cm3, Ix = 2.12 cm4, Iy = 11.3 cm4, It = 0.77 cm4
Length: 6000 mm
m = 9.594 kg
Surface: anodized
max. tensile load groove flanks: 5000 N
A = 5.71 cm2, Wx = 1.98 cm3, Wy = 4.1 cm3, Ix = 2.12 cm4, Iy = 11.3 cm4, It = 0.77 cm4
Length: 6000 mm
m = 9.594 kg
The bed plate connecting profile 8 55x20 can be used to create continuous grooved panels together with the bed plate profile 8 152x20. The profile grooves 8 are arranged in a grid dimension of 40 mm. The grooved panels can be mounted directly onto a wide variety of substructures or profile frames. Button-head screws M8x16 with flange, galvanized and T-slot nut 8 St M8, galvanized are recommended for fastening. The bed plate connection profile 8 55x20 can be combined with the Bed plate profile 8 152x20 on both sides.
