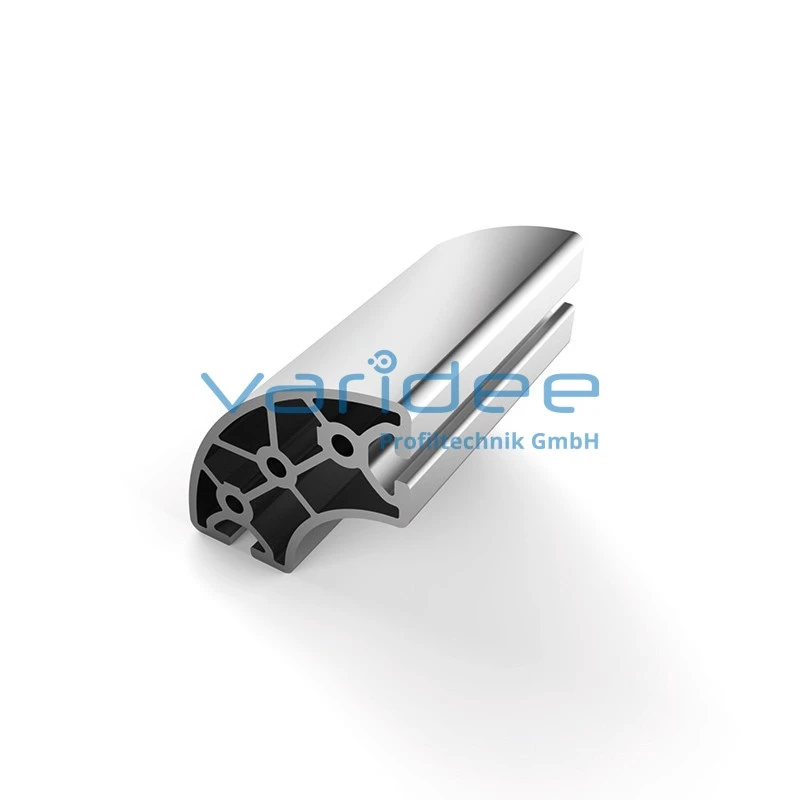

Profile 8 R40/80-90° (cut)
P8-R40/80-90-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 15 cm2, Wx = 18.69 cm3, Wy = 18.69 cm3, Ix = 76.25 cm4, Iy = 76.25 cm4, It = 45.84 cm4
Cut max.: 6000 mm
Saw Cut Type C
m = 4.05 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 15 cm2, Wx = 18.69 cm3, Wy = 18.69 cm3, Ix = 76.25 cm4, Iy = 76.25 cm4, It = 45.84 cm4
Cut max.: 6000 mm
Saw Cut Type C
m = 4.05 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
