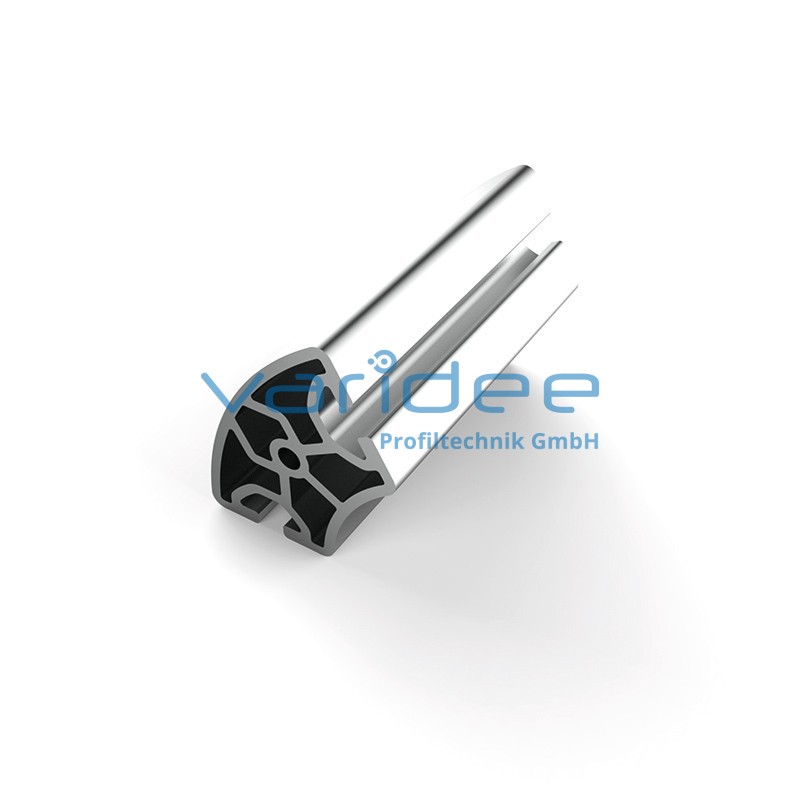

Profile 8 R40/80-60° (3 meters)
P8-R40/80-60-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 10.5 cm2, Wx = 5.96 cm3, Wy = 11.56 cm3, Ix = 22.64 cm4, Iy = 34.92 cm4, It = 19.18 cm4
Length: 3000 mm
m = 2.83 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 10.5 cm2, Wx = 5.96 cm3, Wy = 11.56 cm3, Ix = 22.64 cm4, Iy = 34.92 cm4, It = 19.18 cm4
Length: 3000 mm
m = 2.83 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
