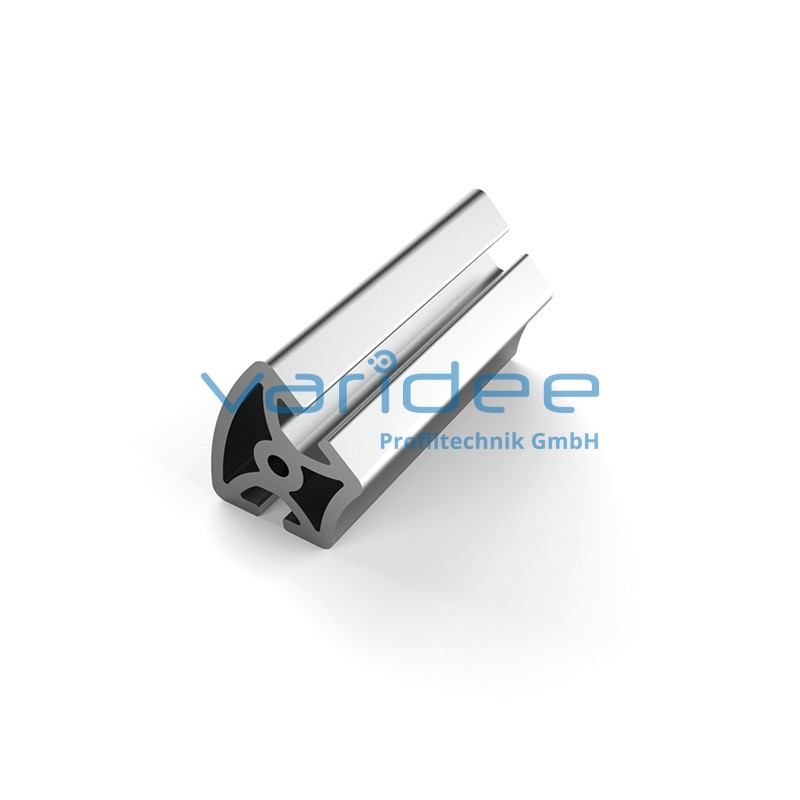

Profile 8 R40/80-45° (cut)
P8-R40/80-45-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 10.23 cm2, Wx = 6.74 cm3, Wy = 6.14 cm3, Ix = 21.33 cm4, Iy = 16.06 cm4, It = 12.41 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.77 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 10.23 cm2, Wx = 6.74 cm3, Wy = 6.14 cm3, Ix = 21.33 cm4, Iy = 16.06 cm4, It = 12.41 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.77 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
