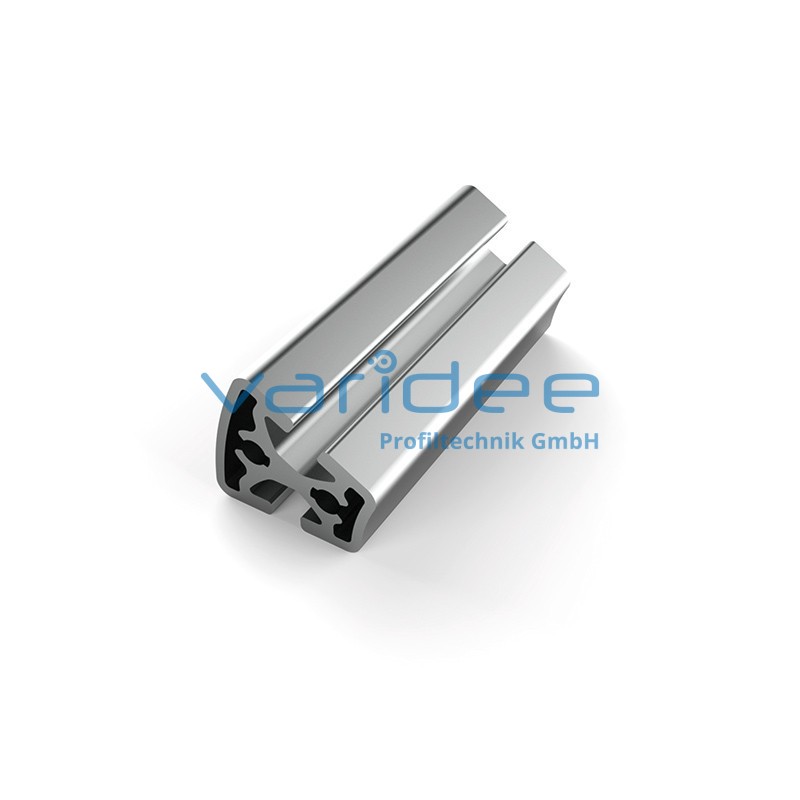

Profile 8 R40/80-30° (6 meters)
P8-R40/80-30-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 6.2 cm2, Wx = 2.84 cm3, Wy = 3.8 cm3, Ix = 6.42 cm4, Iy = 8.9 cm4, It = 3.18 cm4
Length: 6000 mm
m = 1.67 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 6.2 cm2, Wx = 2.84 cm3, Wy = 3.8 cm3, Ix = 6.42 cm4, Iy = 8.9 cm4, It = 3.18 cm4
Length: 6000 mm
m = 1.67 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
