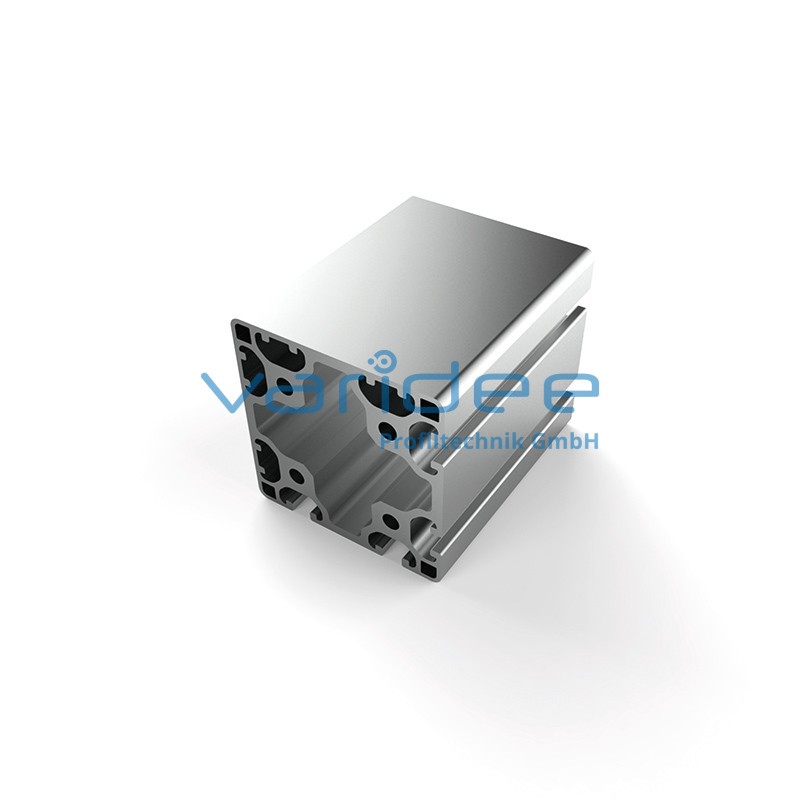

Profile 8 80x80 4N90 light (3 meters)
P8-80x80-4N90-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 20.39 cm2, Wx = 34.24 cm3, Wy = 34.24 cm3, Ix = 139.1 cm4, Iy = 139.1 cm4, It = 122.46 cm4
Length: 3000 mm
m = 5.50 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 20.39 cm2, Wx = 34.24 cm3, Wy = 34.24 cm3, Ix = 139.1 cm4, Iy = 139.1 cm4, It = 122.46 cm4
Length: 3000 mm
m = 5.50 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
