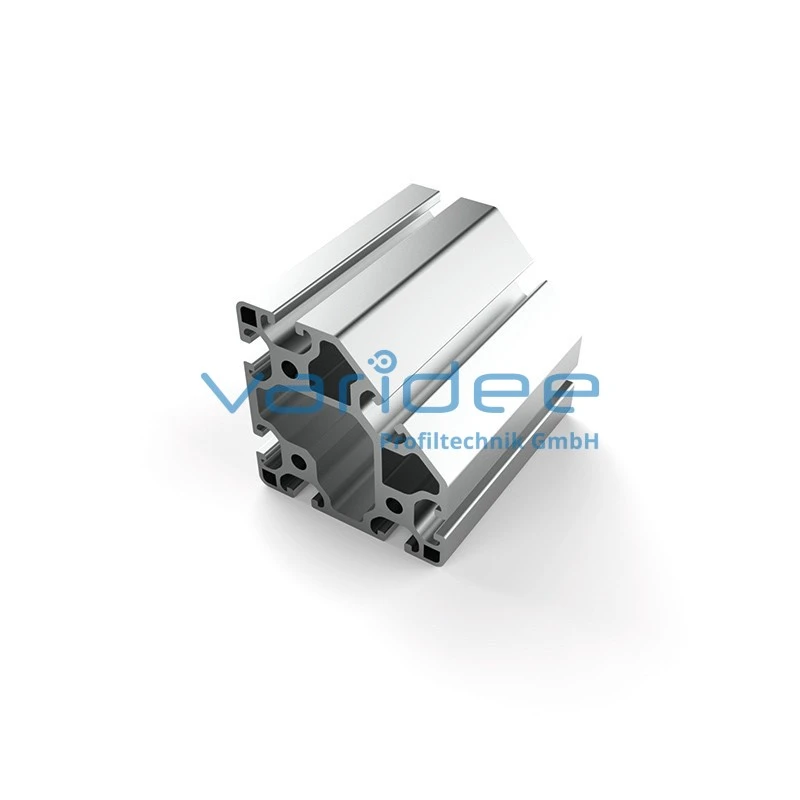

Profile 8 80x80-45° light (cut)
P8-80x80-45-L-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 18.86 cm2, Wx = 24.97 cm3, Wy = 24.97 cm3, Ix = 109.11 cm4, Iy = 109.11 cm4, It = 68.71 cm4
Cut max.: 6000 mm
Saw Cut Type C
m = 5.09 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 18.86 cm2, Wx = 24.97 cm3, Wy = 24.97 cm3, Ix = 109.11 cm4, Iy = 109.11 cm4, It = 68.71 cm4
Cut max.: 6000 mm
Saw Cut Type C
m = 5.09 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
