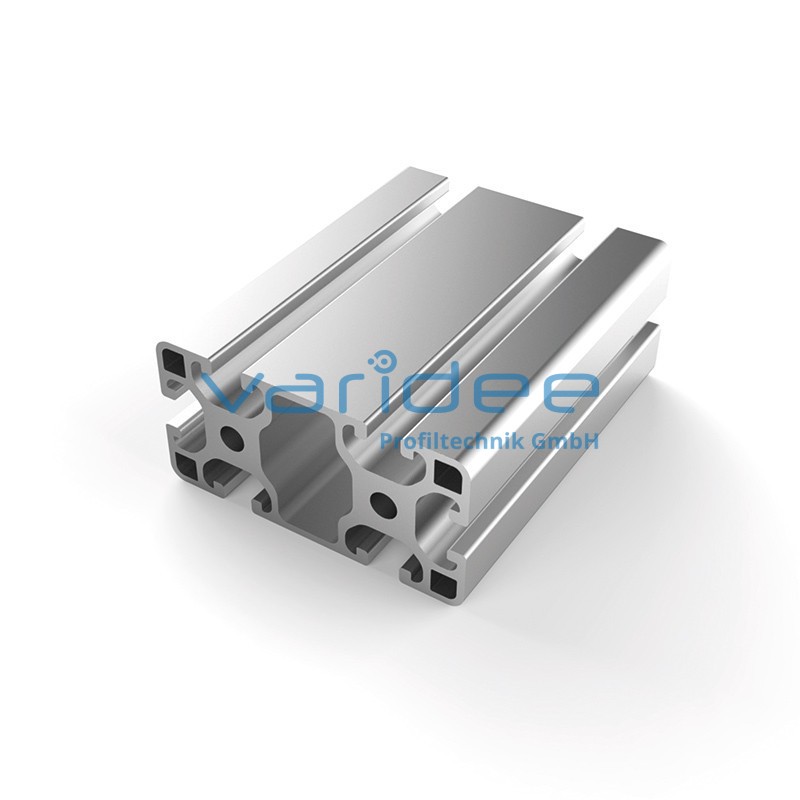

Profile 8 80x40 light (3 meters)
P8-80x40-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 11.45 cm2, Wx = 8.32 cm3, Wy = 17.39 cm3, Ix = 16.62 cm4, Iy = 69.56 cm4, It = 10.05 cm4
Length: 3000 mm
m = 3.092 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 11.45 cm2, Wx = 8.32 cm3, Wy = 17.39 cm3, Ix = 16.62 cm4, Iy = 69.56 cm4, It = 10.05 cm4
Length: 3000 mm
m = 3.092 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
