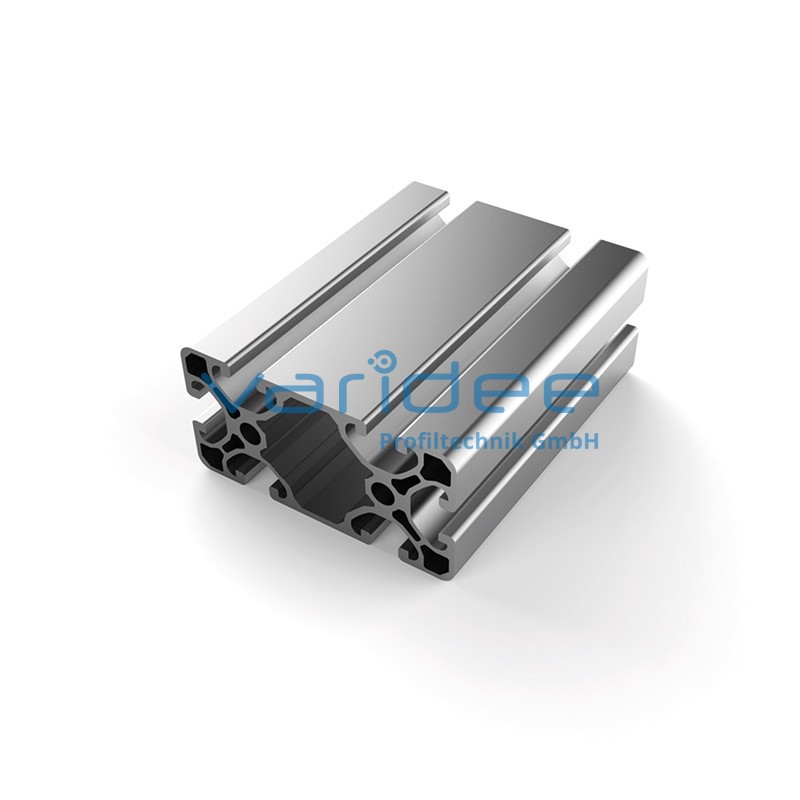

Profile 8 80x40 E (cut)
P8-80x40-E-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 8.93 cm2, Wx = 7.61 cm3, Wy = 14.48 cm3, Ix = 15.18 cm4, Iy = 57.84 cm4, It = 8.77 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.44 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 8.93 cm2, Wx = 7.61 cm3, Wy = 14.48 cm3, Ix = 15.18 cm4, Iy = 57.84 cm4, It = 8.77 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.44 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
