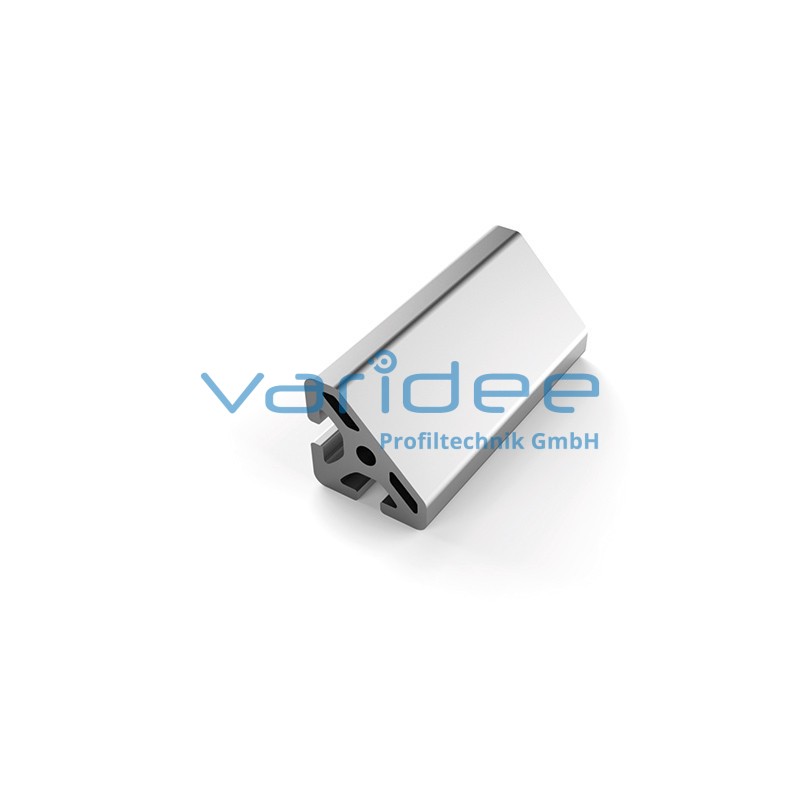

Profile 8 40x40-45° heavy (cut)
P8-40x40-45-S-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 7.3 cm2, Wx = 4.08 cm3, Wy = 4.08 cm3, Ix = 9.39 cm4, Iy = 9.39 cm4, It = 2.7 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.97 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 7.3 cm2, Wx = 4.08 cm3, Wy = 4.08 cm3, Ix = 9.39 cm4, Iy = 9.39 cm4, It = 2.7 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.97 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
