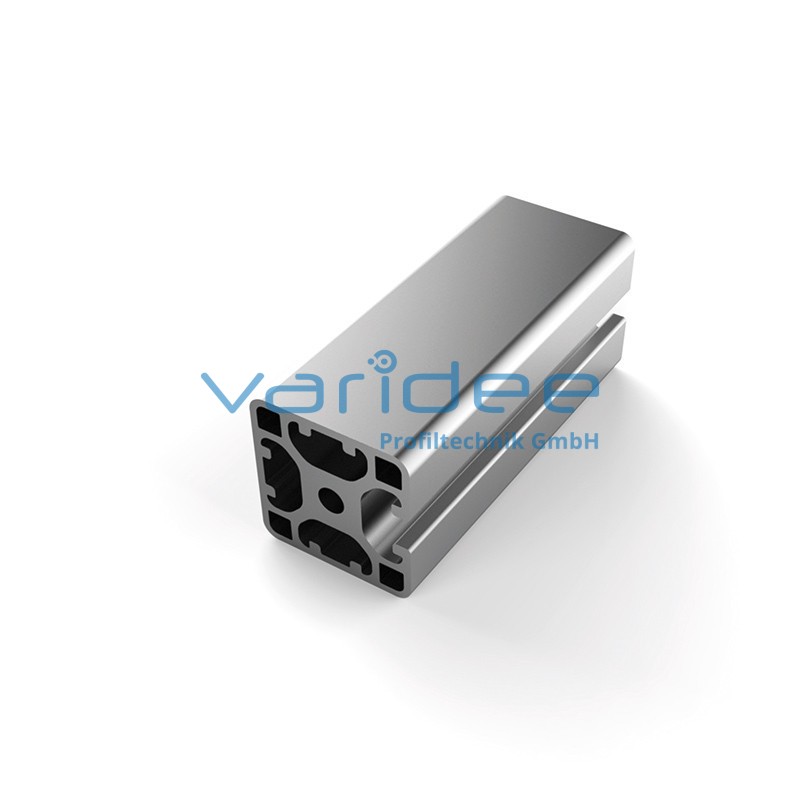

Profile 8 40x40 3N light (6 meters)
P8-40x40-3N-L-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 6.96 cm2, Wx = 4.7 cm3, Wy = 5.11 cm3, Ix = 9.62 cm4, Iy = 10.23 cm4, It = 6.95 cm4
Length: 6000 mm
m = 1.90 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 6.96 cm2, Wx = 4.7 cm3, Wy = 5.11 cm3, Ix = 9.62 cm4, Iy = 10.23 cm4, It = 6.95 cm4
Length: 6000 mm
m = 1.90 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
