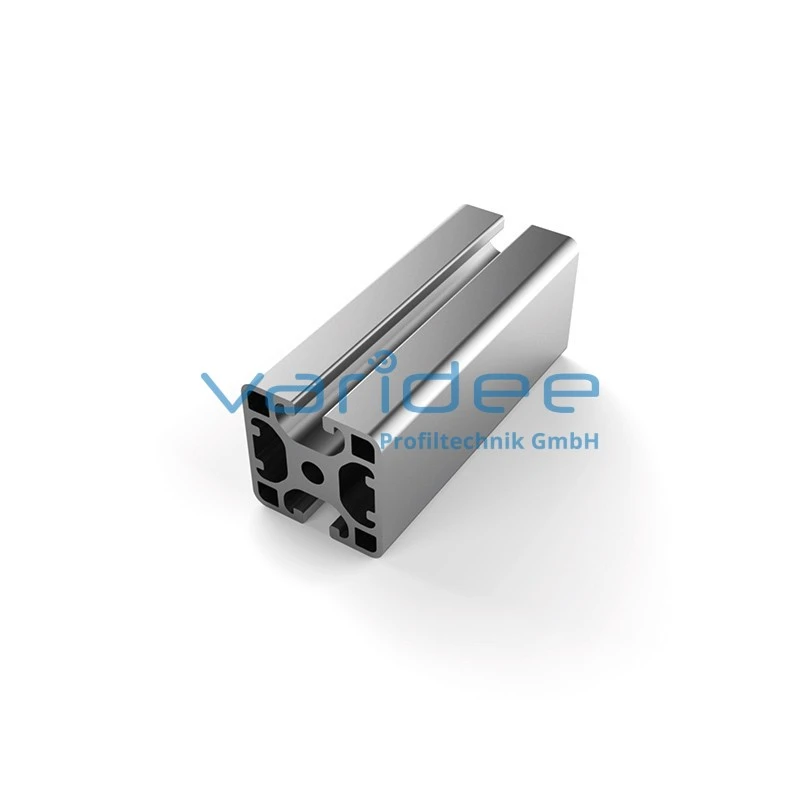

Profile 8 40x40 2N180 light (6 meters)
P8-40x40-2N180-L-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 6.77 cm2, Wx = 5.06 cm3, Wy = 4.52 cm3, Ix = 10.12 cm4, Iy = 9.03 cm4, It = 4.88 cm4
Length: 6000 mm
m = 1.867 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 6.77 cm2, Wx = 5.06 cm3, Wy = 4.52 cm3, Ix = 10.12 cm4, Iy = 9.03 cm4, It = 4.88 cm4
Length: 6000 mm
m = 1.867 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
