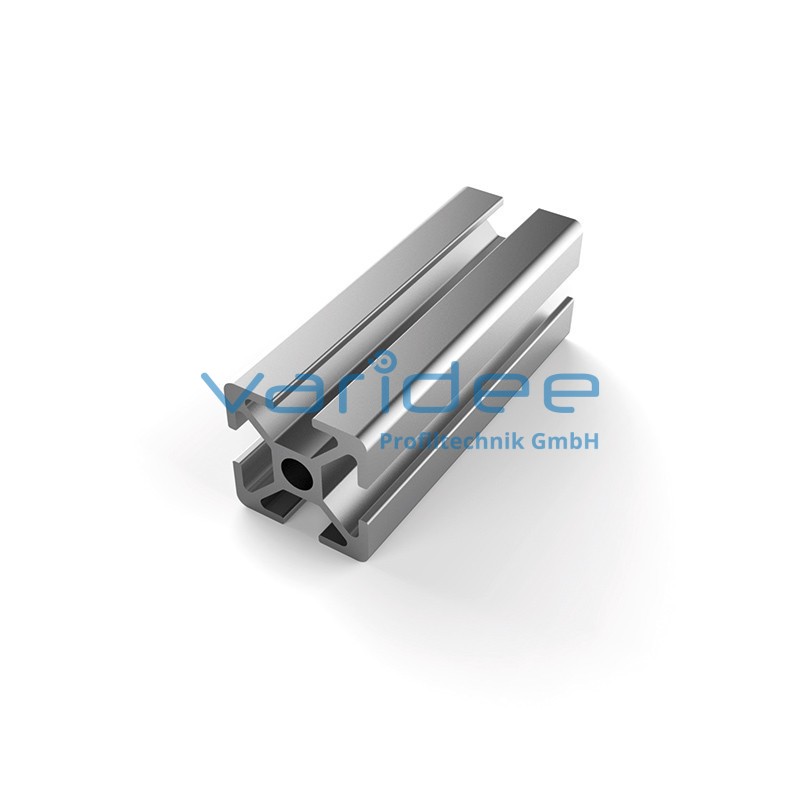

Profile 8 30x30 (cut)
P8-30x30-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.43 cm2, Wx = 1.8 cm3, Wy = 1.8 cm3, Ix = 2.7 cm4, Iy = 2.7 cm4, It = 0.27 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 0.86 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.43 cm2, Wx = 1.8 cm3, Wy = 1.8 cm3, Ix = 2.7 cm4, Iy = 2.7 cm4, It = 0.27 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 0.86 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
