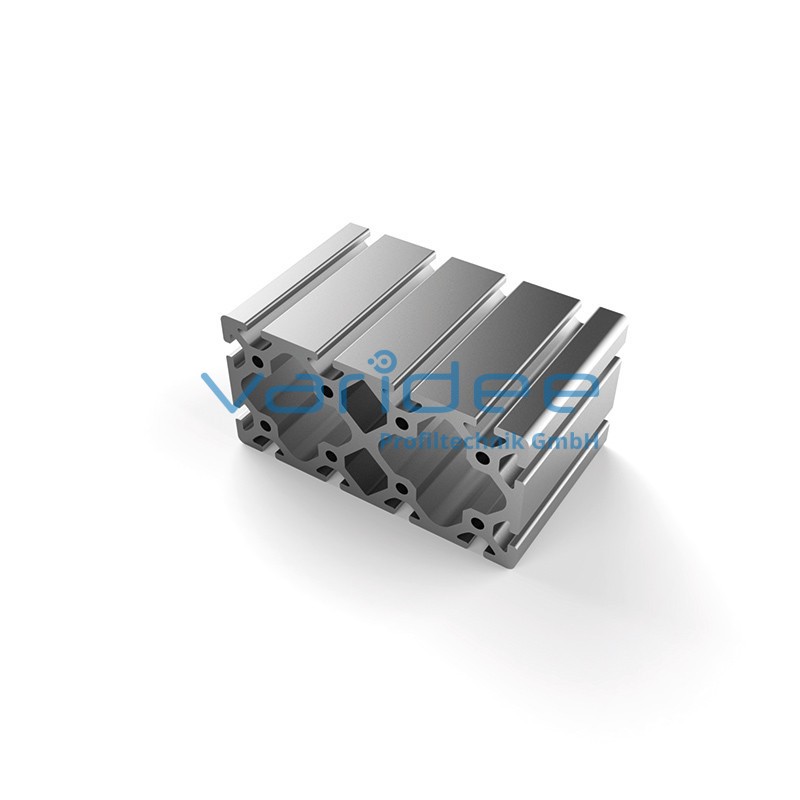

Profile 8 160x80 heavy (3 meters)
P8-160x80-S-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 50.07 cm2, Wx = 90.22 cm3, Wy = 153.54 cm3, Ix = 360.89 cm4, Iy = 1228.33 cm4, It = 398.58 cm4
Length: 3000 mm
m = 13.52 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 50.07 cm2, Wx = 90.22 cm3, Wy = 153.54 cm3, Ix = 360.89 cm4, Iy = 1228.33 cm4, It = 398.58 cm4
Length: 3000 mm
m = 13.52 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
