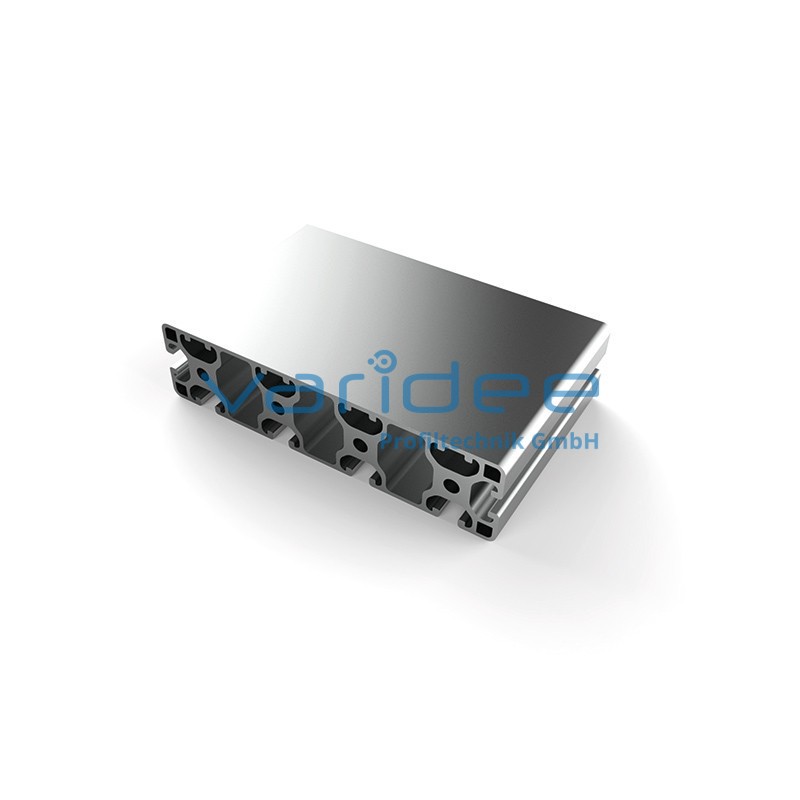

Profile 8 160x40 4N light (6 meters)
P8-160x40-4N-L-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 21.5 cm2, Wx = 16.52 cm3, Wy = 64.08 cm3, Ix = 33.9 cm4, Iy = 512.66 cm4, It = 45.36 cm4
Length: 6000 mm
m = 5.85 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 21.5 cm2, Wx = 16.52 cm3, Wy = 64.08 cm3, Ix = 33.9 cm4, Iy = 512.66 cm4, It = 45.36 cm4
Length: 6000 mm
m = 5.85 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
