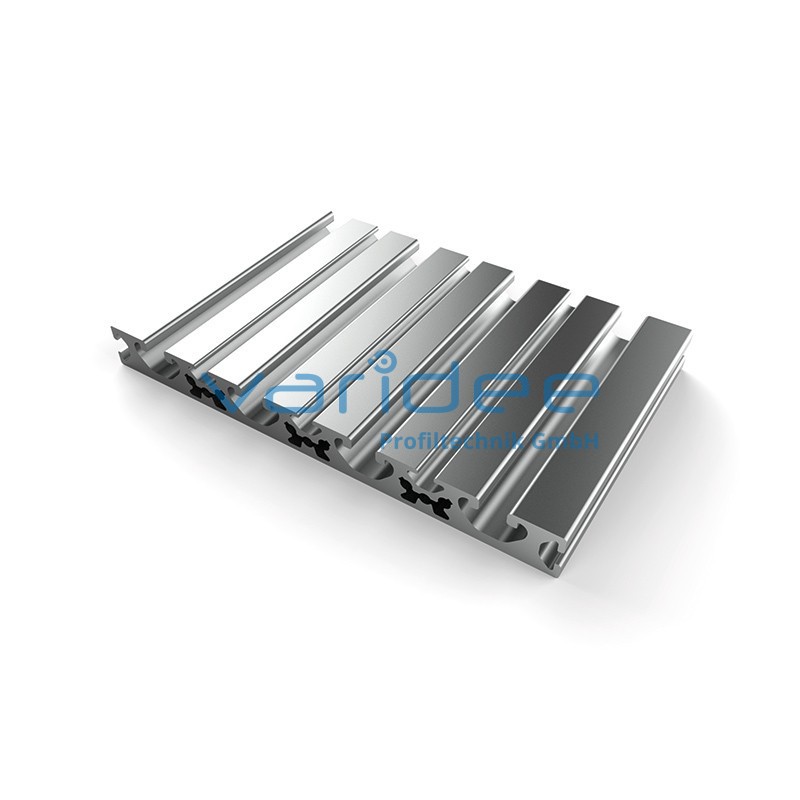

Profile 8 160x16 (6 meters)
P8-160x16-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 13.88 cm2, Wx = 4.25 cm3, Wy = 38.48 cm3, Ix = 3.8 cm4, Iy = 307.83 cm4, It = 2.37 cm4
Length: 6000 mm
m = 3.75 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 13.88 cm2, Wx = 4.25 cm3, Wy = 38.48 cm3, Ix = 3.8 cm4, Iy = 307.83 cm4, It = 2.37 cm4
Length: 6000 mm
m = 3.75 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
