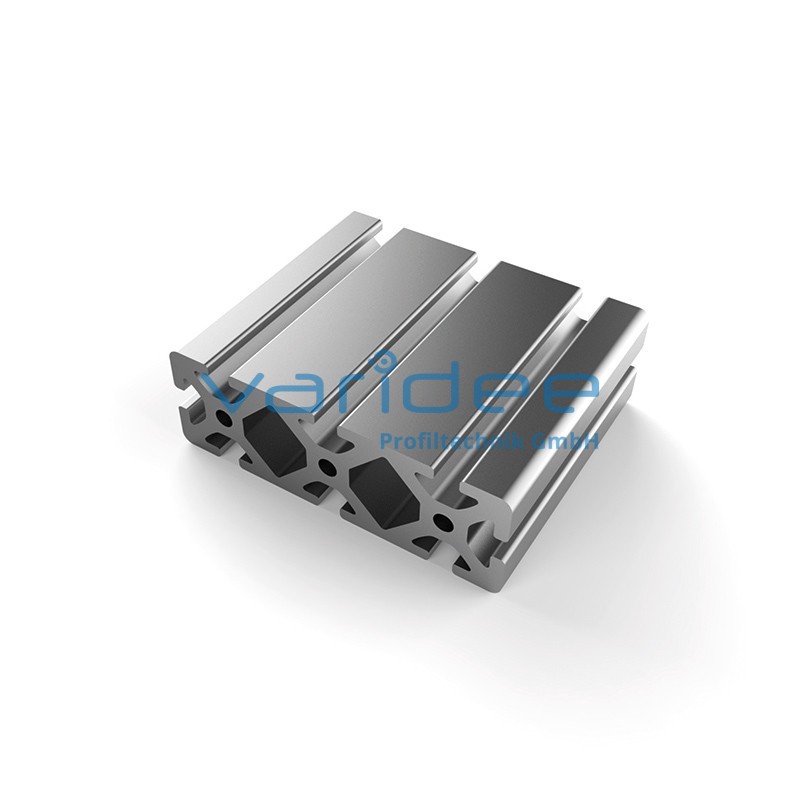

Profile 8 120x40 heavy (3 meters)
P8-120x40-S-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 24.38 cm2, Wx = 19.9 cm3, Wy = 53.77 cm3, Ix = 39.8 cm4, Iy = 322.66 cm4, It = 35.15 cm4
Length: 3000 mm
m = 6.664 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 24.38 cm2, Wx = 19.9 cm3, Wy = 53.77 cm3, Ix = 39.8 cm4, Iy = 322.66 cm4, It = 35.15 cm4
Length: 3000 mm
m = 6.664 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
