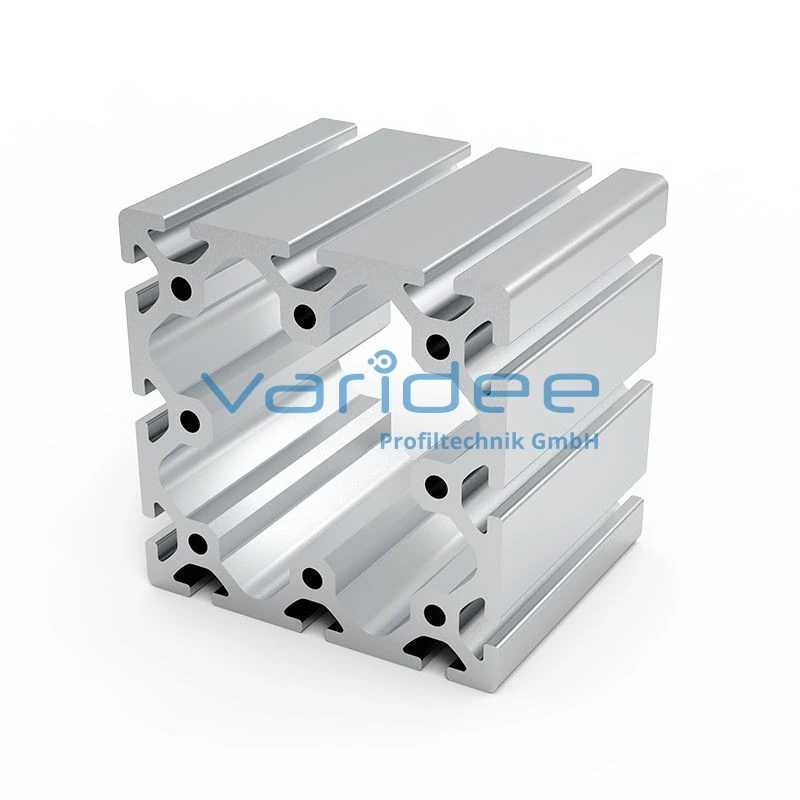

Profile 8 120x120 heavy (cut)
P8-120x120-S-Z
Material: Aluminum, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 45.74 cm2, Wx = 132.81 cm3, Wy = 132.81 cm3, Ix = 796.87 cm4, Iy = 796.87 cm4, It = 577.75 cm4
Cut max.: 6000 mm
Saw Cut Type D
m = 12.34 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 45.74 cm2, Wx = 132.81 cm3, Wy = 132.81 cm3, Ix = 796.87 cm4, Iy = 796.87 cm4, It = 577.75 cm4
Cut max.: 6000 mm
Saw Cut Type D
m = 12.34 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
