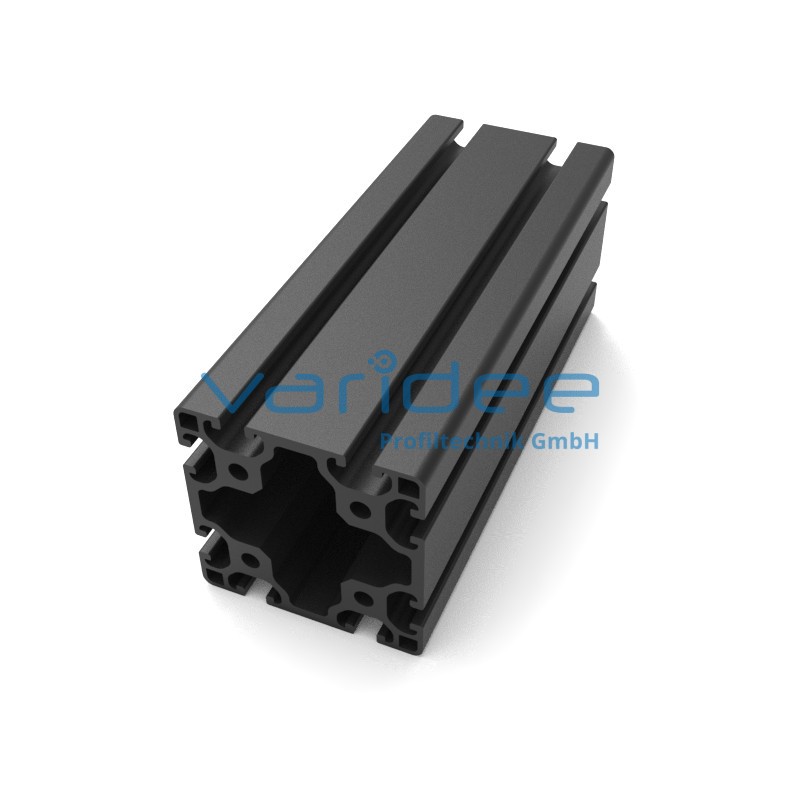

Profile 8 80x80 light, black (3 meters)
P8-80x80-L-SCH-S3
Material: Aluminium, EN AW 6063 T66
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 2500 N
A = 19.49 cm2, Wx = 33.48 cm3, Wy = 33.48 cm3, Ix = 134.03 cm4, Iy = 134.03 cm4, It = 82.91 cm4
Length: 3000 mm
m = 5.262 kg/m
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 2500 N
A = 19.49 cm2, Wx = 33.48 cm3, Wy = 33.48 cm3, Ix = 134.03 cm4, Iy = 134.03 cm4, It = 82.91 cm4
Length: 3000 mm
m = 5.262 kg/m
Black anodized profiles impress with their special appearance. The surface is pickled and black (satin matt) anodized (E6, C35). This makes the profiles scratch-resistant and corrosion-protected. The hard anodized coating also ensures a particularly low-burr saw cut. Series 8 profiles are suitable for all kinds of constructions. The grooves and core holes are designed for screws of size M3 to M8. Series 8 also focuses on the functionality of the modular principle.
