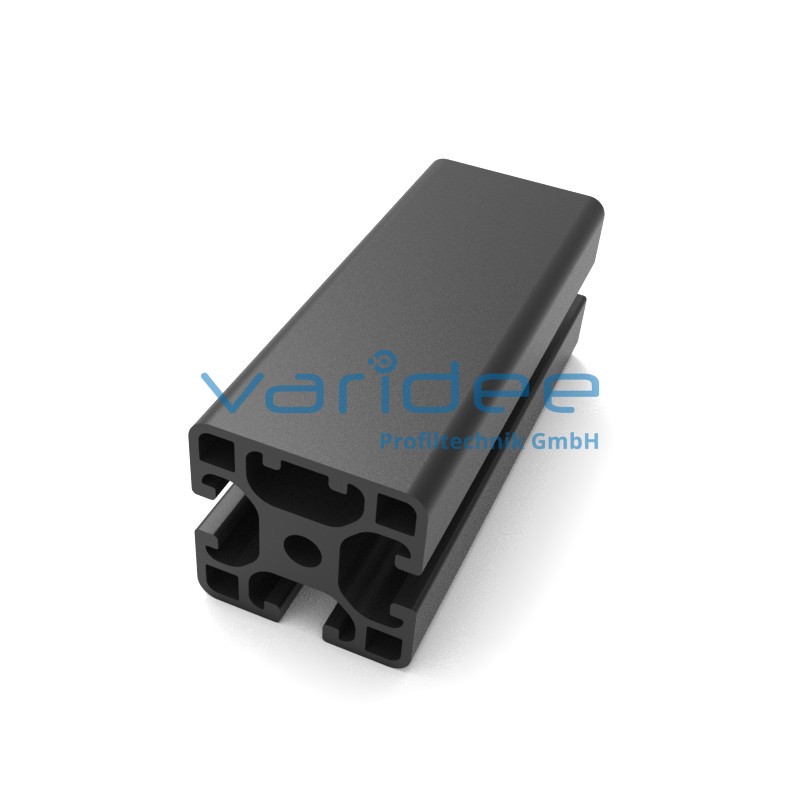

Profile 8 40x40 1N light, black (cut)
P8-40x40-1N-L-SCH-Z
Material: Aluminium, EN AW 6063 T66
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 2500 N
A = 6.61 cm2, Wx = 4.66 cm3, Wy = 4.5 cm3, Ix = 9.54 cm4, Iy = 9.01 cm4, It = 2.99 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.821 kg/m
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 2500 N
A = 6.61 cm2, Wx = 4.66 cm3, Wy = 4.5 cm3, Ix = 9.54 cm4, Iy = 9.01 cm4, It = 2.99 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.821 kg/m
Black anodized profiles impress with their special appearance. The surface is pickled and black (satin matt) anodized (E6, C35). This makes the profiles scratch-resistant and corrosion-protected. The hard anodized coating also ensures a particularly low-burr saw cut. Series 8 profiles are suitable for all kinds of constructions. The grooves and core holes are designed for screws of size M3 to M8. Series 8 also focuses on the functionality of the modular principle.
