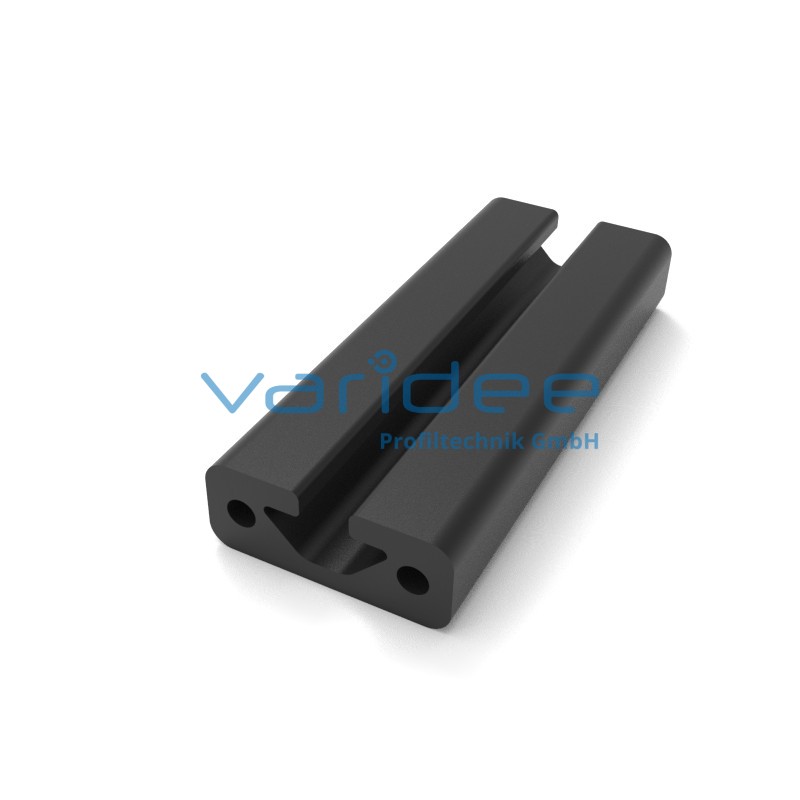

Profile 8 40x16 heavy, black (6 meters)
P8-40x16-S-SCH-S6
Material: Aluminium, EN AW 6063 T66
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 5000 N
A = 4.24 cm2, Wx = 1.22 cm3, Wy = 3.44 cm3, Ix = 1.04 cm4, Iy = 6.89 cm4, It = 1.09 cm4
Length: 6000 mm
m = 1.168 kg/m
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 5000 N
A = 4.24 cm2, Wx = 1.22 cm3, Wy = 3.44 cm3, Ix = 1.04 cm4, Iy = 6.89 cm4, It = 1.09 cm4
Length: 6000 mm
m = 1.168 kg/m
Black anodized profiles impress with their special appearance. The surface is pickled and black (satin matt) anodized (E6, C35). This makes the profiles scratch-resistant and corrosion-protected. The hard anodized coating also ensures a particularly low-burr saw cut. Series 8 profiles are suitable for all kinds of constructions. The grooves and core holes are designed for screws of size M3 to M8. Series 8 also focuses on the functionality of the modular principle.
