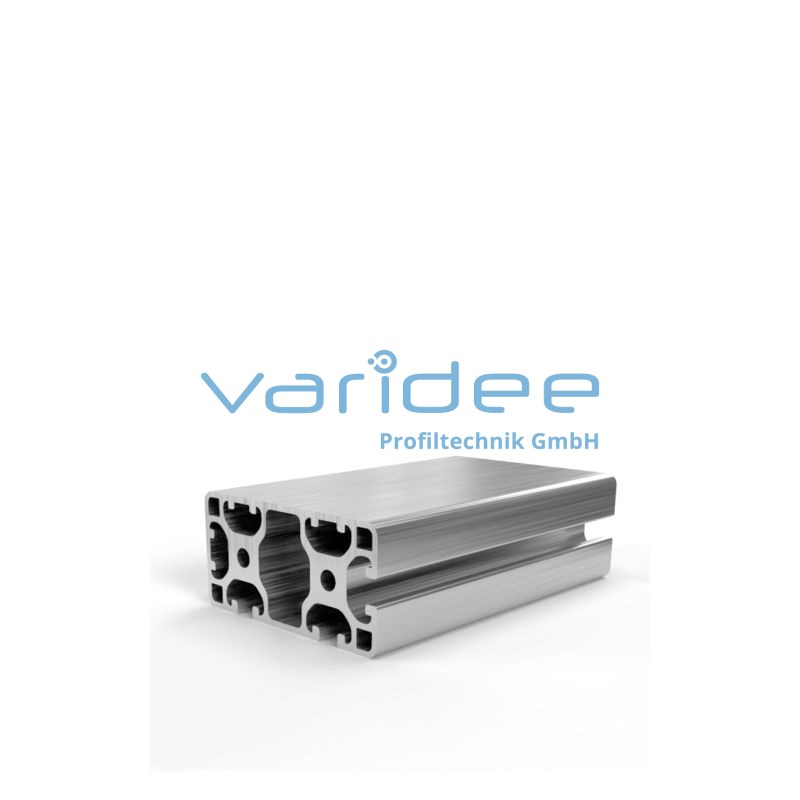

Profile 8 80x40 3N90 light (3 meters)
P8-80x40-3N90-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 11.75 cm2, Wx = 8.65 cm3, Wy = 18.09 cm3, Ix = 17.7 cm4, Iy = 73.25 cm4, It = 19.61 cm4
Length: 3000 mm
m = 3.23 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 11.75 cm2, Wx = 8.65 cm3, Wy = 18.09 cm3, Ix = 17.7 cm4, Iy = 73.25 cm4, It = 19.61 cm4
Length: 3000 mm
m = 3.23 kg/m
The profile 8 80x40 3N90° light has closed grooves on the outside and is ideally suited for stable frame and rack constructions. The 8 series is suitable for constructions and applications of all kinds. The grooves are designed for screws up to size M8.
