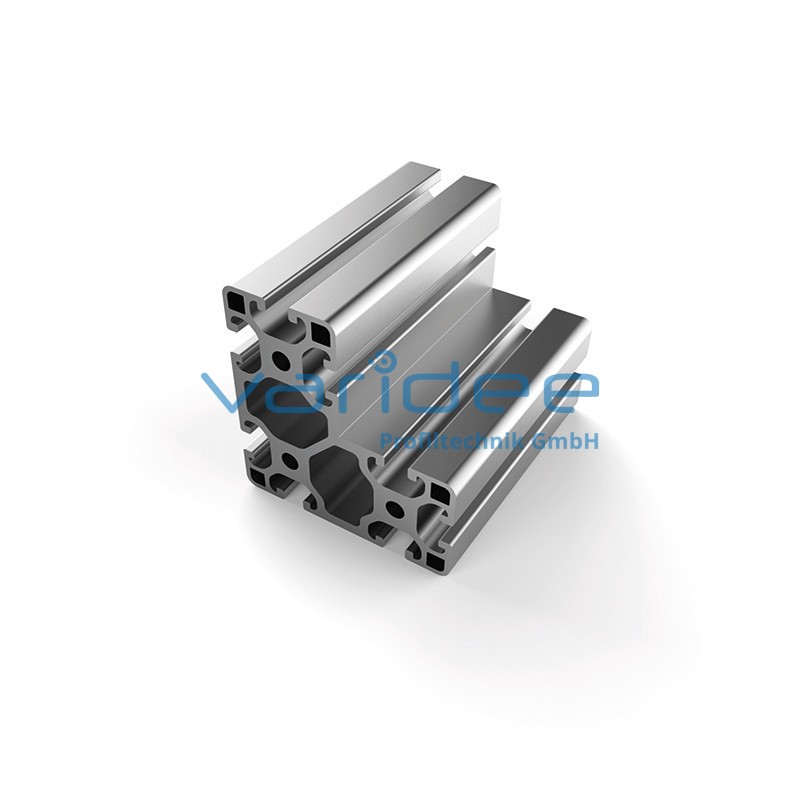

Profile 8 W80x80x40 light (3 meters)
P8-W-80x80x40-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 17.77 cm2, Wx = 20.54 cm3, Wy = 20.54 cm3, Ix = 95.35 cm4, Iy = 95.35 cm4, It = 31.41 cm4
Length: 3000 mm
m = 4.80 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 17.77 cm2, Wx = 20.54 cm3, Wy = 20.54 cm3, Ix = 95.35 cm4, Iy = 95.35 cm4, It = 31.41 cm4
Length: 3000 mm
m = 4.80 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
