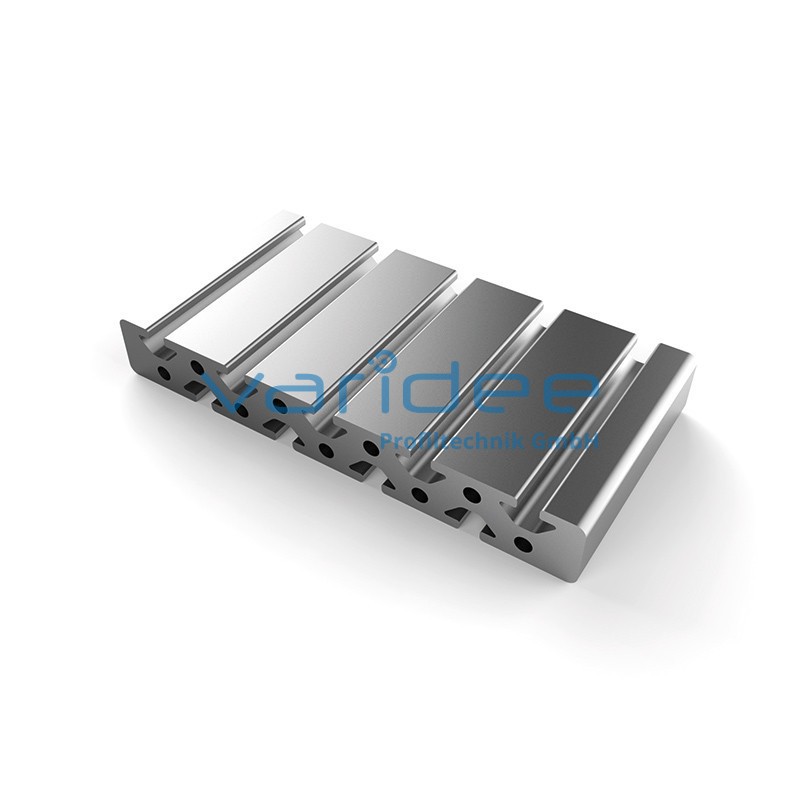

Profile 8 200x28 heavy (3 meters)
P8-200x28-S-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 38.39 cm2, Wx = 17.74 cm3, Wy = 138.35 cm3, Ix = 25.37 cm4, Iy = 1383.53 cm4, It = 22.91 cm4
Length: 3000 mm
m = 10.37 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 38.39 cm2, Wx = 17.74 cm3, Wy = 138.35 cm3, Ix = 25.37 cm4, Iy = 1383.53 cm4, It = 22.91 cm4
Length: 3000 mm
m = 10.37 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
