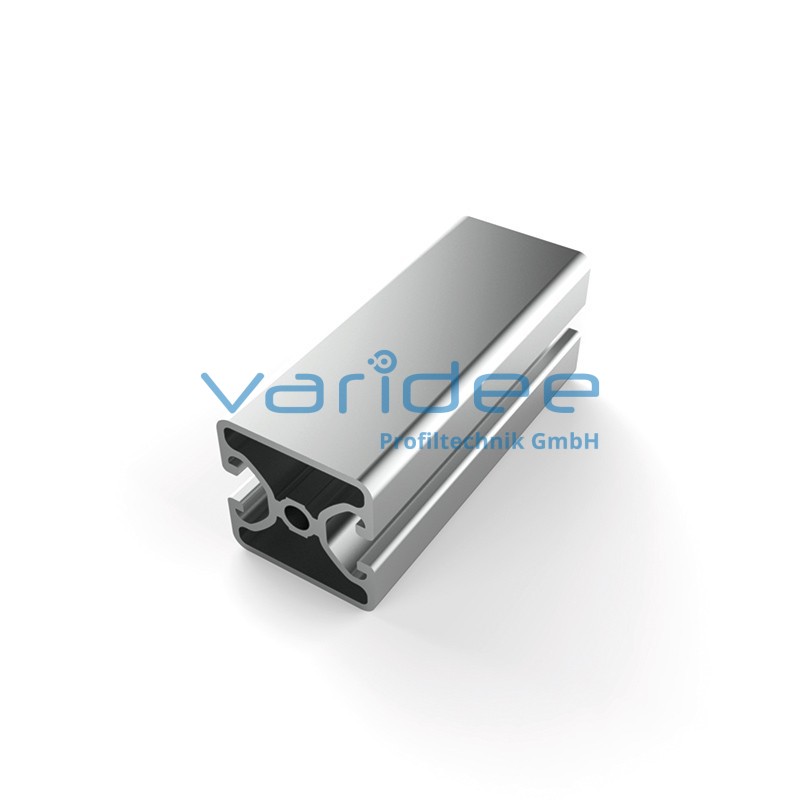

Profile 8 40x40 2N180 E (3 meters)
P8-40x40-2N180-E-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 5 cm2, Wx = 4.07 cm3, Wy = 4.83 cm3, Ix = 8.15 cm4, Iy = 8.77 cm4, It = 4.64 cm4
Length: 3000 mm
m = 1.35 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 5 cm2, Wx = 4.07 cm3, Wy = 4.83 cm3, Ix = 8.15 cm4, Iy = 8.77 cm4, It = 4.64 cm4
Length: 3000 mm
m = 1.35 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
