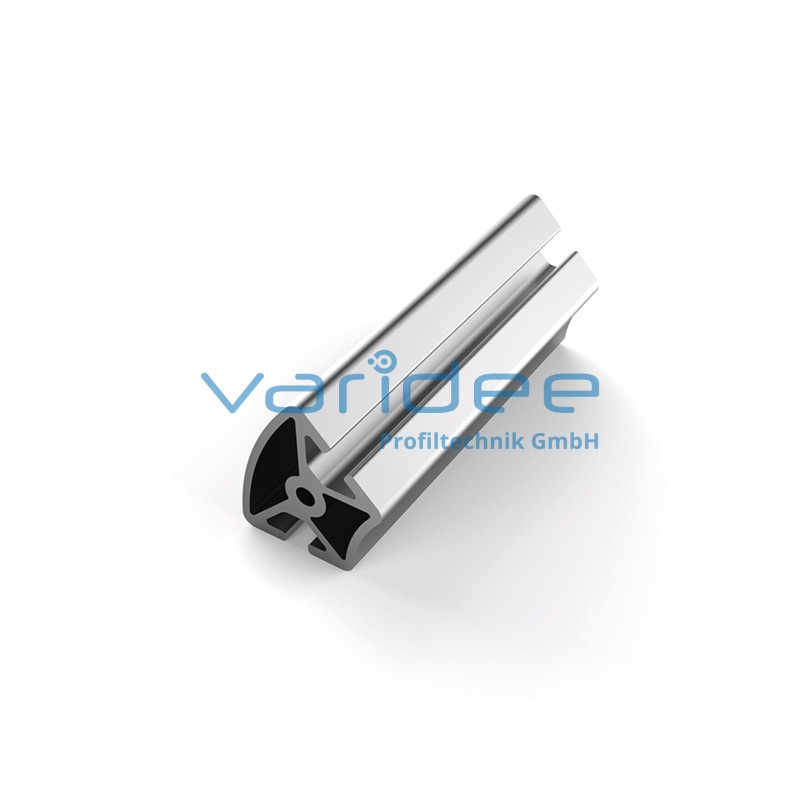

Profile 6 R30/60-45° (cut)
P6-R30/60-45-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.52 cm2, Wx = 2.42 cm3, Wy = 2.31 cm3, Ix = 5.81 cm4, Iy = 4.15 cm4, It = 3.93 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.184 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.52 cm2, Wx = 2.42 cm3, Wy = 2.31 cm3, Ix = 5.81 cm4, Iy = 4.15 cm4, It = 3.93 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.184 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
