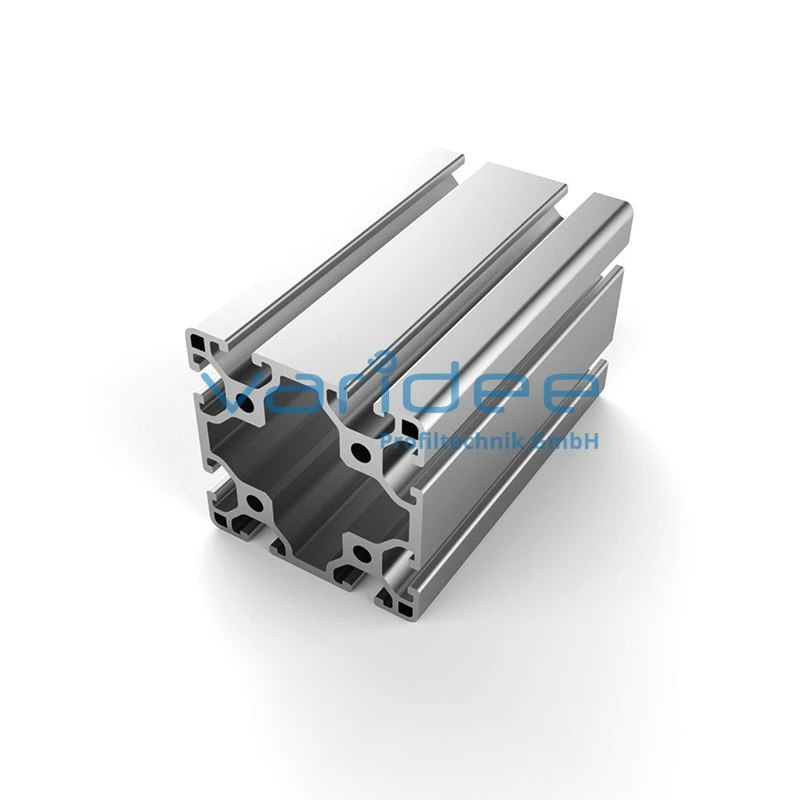

Profile 6 60x60 light (cut)
P6-60x60-L-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 10.01 cm2, Wx = 13.14 cm3, Wy = 13.14 cm3, Ix = 39.49 cm4, Iy = 39.49 cm4, It = 20.43 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.70 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 10.01 cm2, Wx = 13.14 cm3, Wy = 13.14 cm3, Ix = 39.49 cm4, Iy = 39.49 cm4, It = 20.43 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 2.70 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
