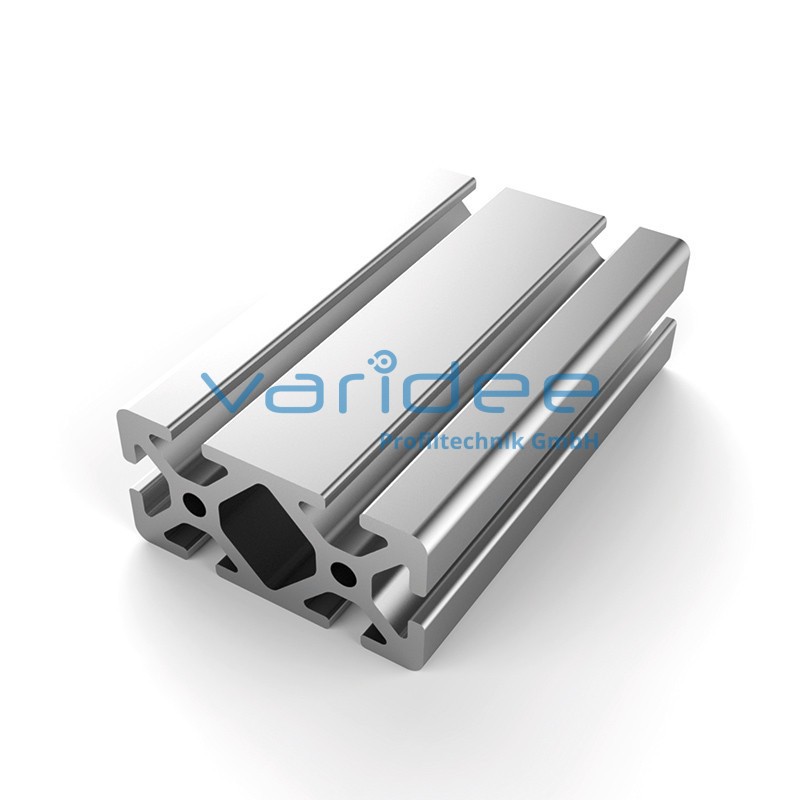

Profile 6 60x30 heavy (3 meters)
P6-60x30-S-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 8.47 cm2, Wx = 5.28 cm3, Wy = 9.77 cm3, Ix = 7.94 cm4, Iy = 29.32 cm4, It = 4.81 cm4
Length: 3000 mm
m = 2.29 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 8.47 cm2, Wx = 5.28 cm3, Wy = 9.77 cm3, Ix = 7.94 cm4, Iy = 29.32 cm4, It = 4.81 cm4
Length: 3000 mm
m = 2.29 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
