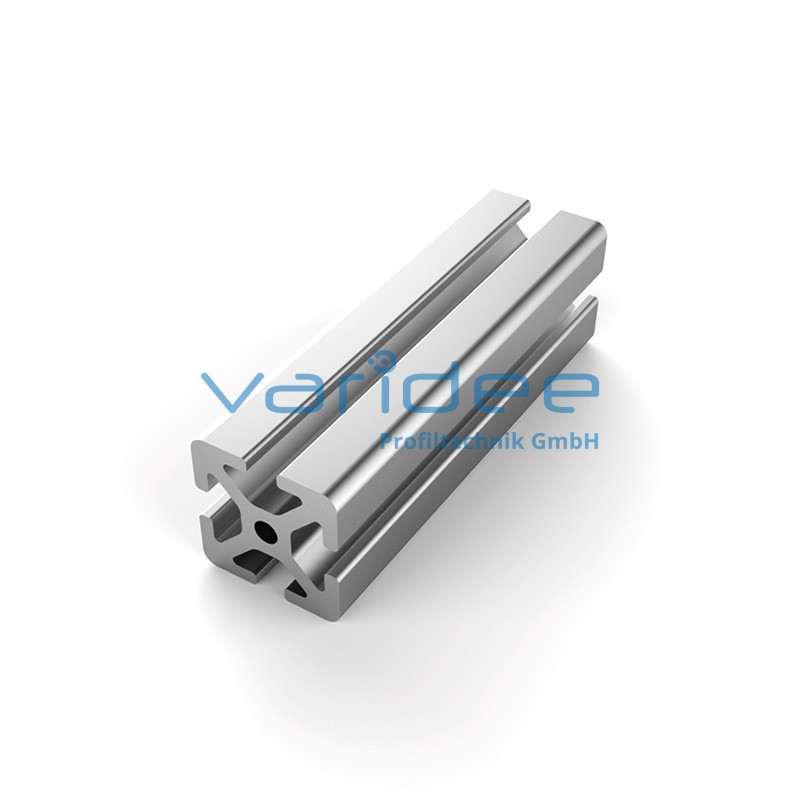

Profile 6 30x30 heavy (6 meters)
P6-30x30-S-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.67 cm2, Wx = 2.78 cm3, Wy = 2.78 cm3, Ix = 4.16 cm4, Iy = 4.16 cm4, It = 0.4 cm4
Length: 6000 mm
m = 1.26 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.67 cm2, Wx = 2.78 cm3, Wy = 2.78 cm3, Ix = 4.16 cm4, Iy = 4.16 cm4, It = 0.4 cm4
Length: 6000 mm
m = 1.26 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
