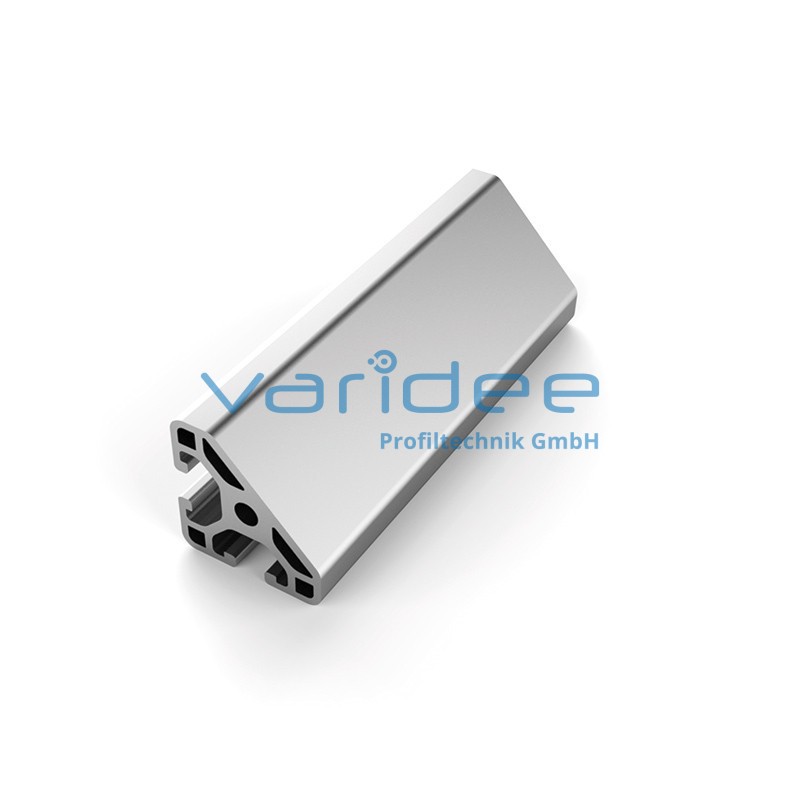

Profile 6 30x30-45° light (3 meters)
P6-30x30-45-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.12 cm2, Wx = 1.33 cm3, Wy = 1.33 cm3, Ix = 2.21 cm4, Iy = 2.21 cm4, It = 0.72 cm4
Length: 3000 mm
m = 0.84 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.12 cm2, Wx = 1.33 cm3, Wy = 1.33 cm3, Ix = 2.21 cm4, Iy = 2.21 cm4, It = 0.72 cm4
Length: 3000 mm
m = 0.84 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
