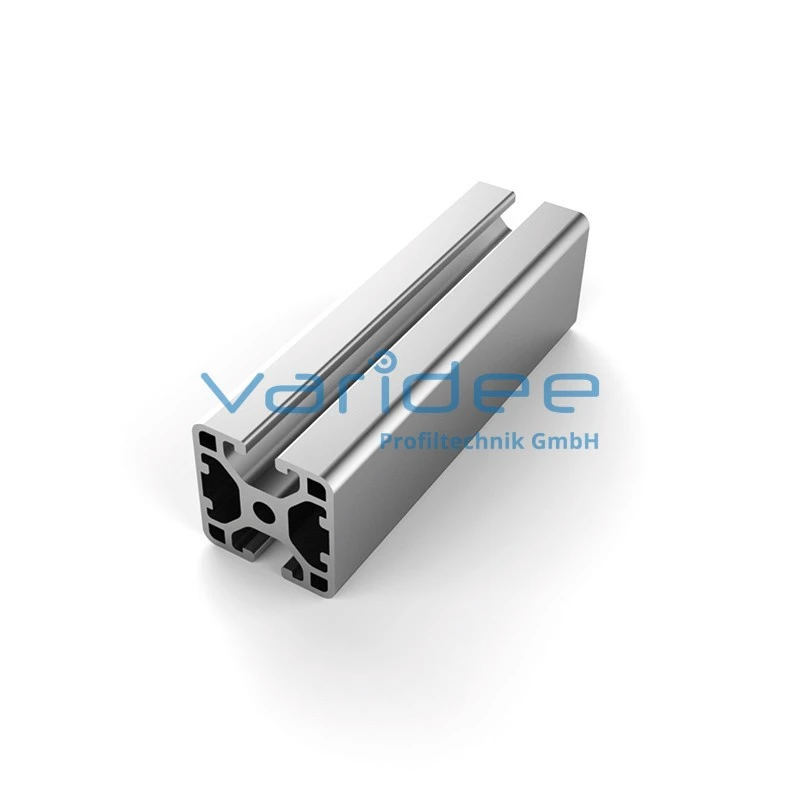

Profile 6 30x30 2N180 light (6 meters)
P6-30x30-2N180-L-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.54 cm2, Wx = 1.93 cm3, Wy = 2.09 cm3, Ix = 2.9 cm4, Iy = 3.14 cm4, It = 1.41 cm4
Length: 6000 mm
m = 0.96 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.54 cm2, Wx = 1.93 cm3, Wy = 2.09 cm3, Ix = 2.9 cm4, Iy = 3.14 cm4, It = 1.41 cm4
Length: 6000 mm
m = 0.96 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
