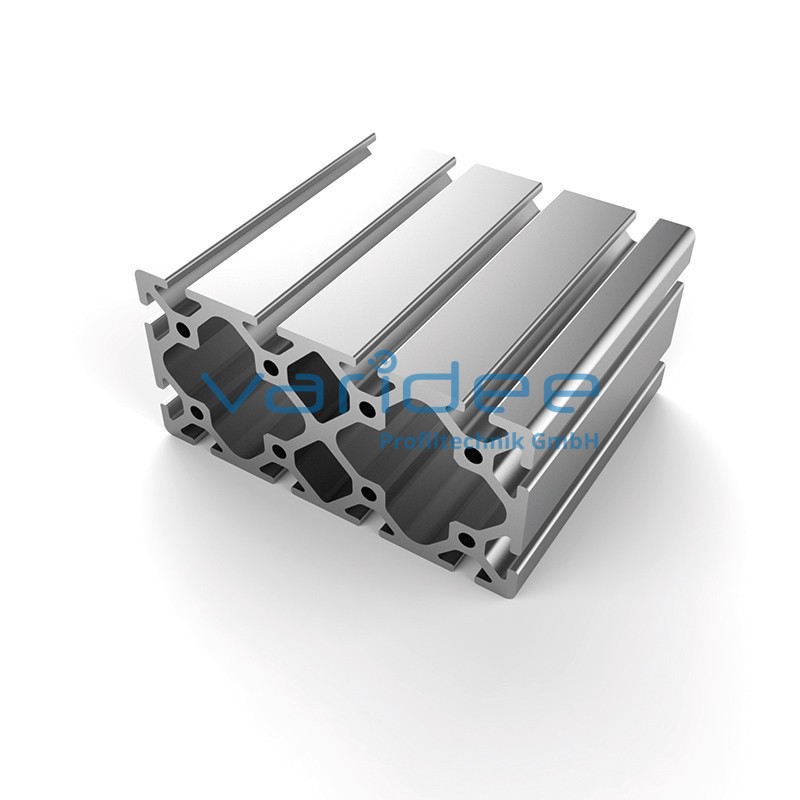

Profile 6 120x60 heavy (3 meters)
P6-120x60-S-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 24.84 cm2, Wx = 34.2 cm3, Wy = 57.91 cm3, Ix = 102.65 cm4, Iy = 347.58 cm4, It = 84.85 cm4
Length: 3000 mm
m = 6.71 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 24.84 cm2, Wx = 34.2 cm3, Wy = 57.91 cm3, Ix = 102.65 cm4, Iy = 347.58 cm4, It = 84.85 cm4
Length: 3000 mm
m = 6.71 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
