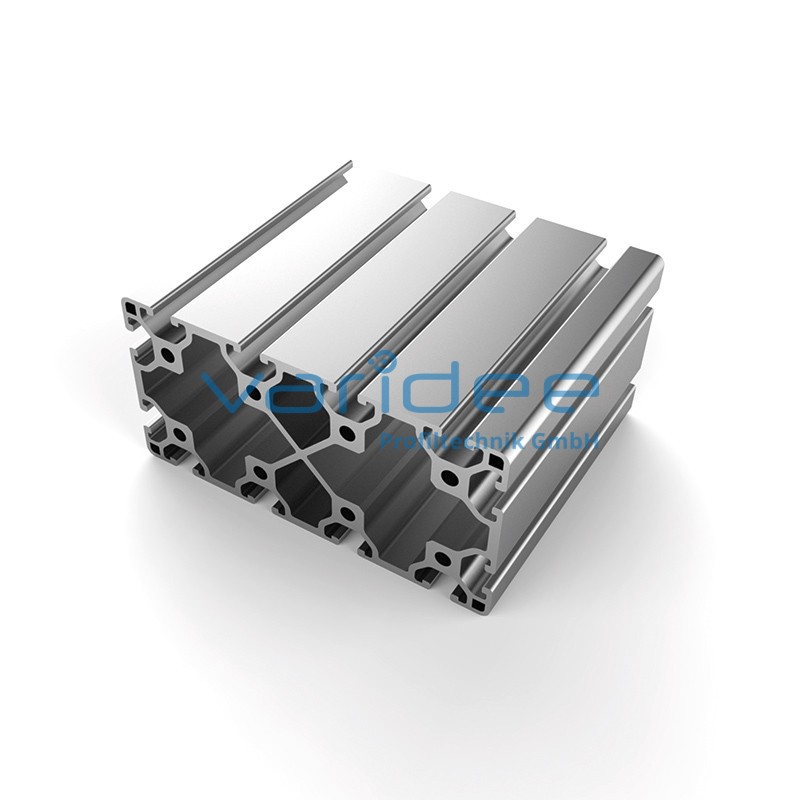

Profile 6 120x60 light (6 meters)
P6-120x60-L-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 18.7 cm2, Wx = 25.54 cm3, Wy = 43.27 cm3, Ix = 76.61 cm4, Iy = 259.65 cm4, It = 62.87 cm4
Length: 6000 mm
m = 5.05 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 18.7 cm2, Wx = 25.54 cm3, Wy = 43.27 cm3, Ix = 76.61 cm4, Iy = 259.65 cm4, It = 62.87 cm4
Length: 6000 mm
m = 5.05 kg/m
Series 6 makes weight-optimized constructions possible. The T-slots are designed for screws sized M3 to M6. Also for series 6 the focus is on functionality of modular design principle.
