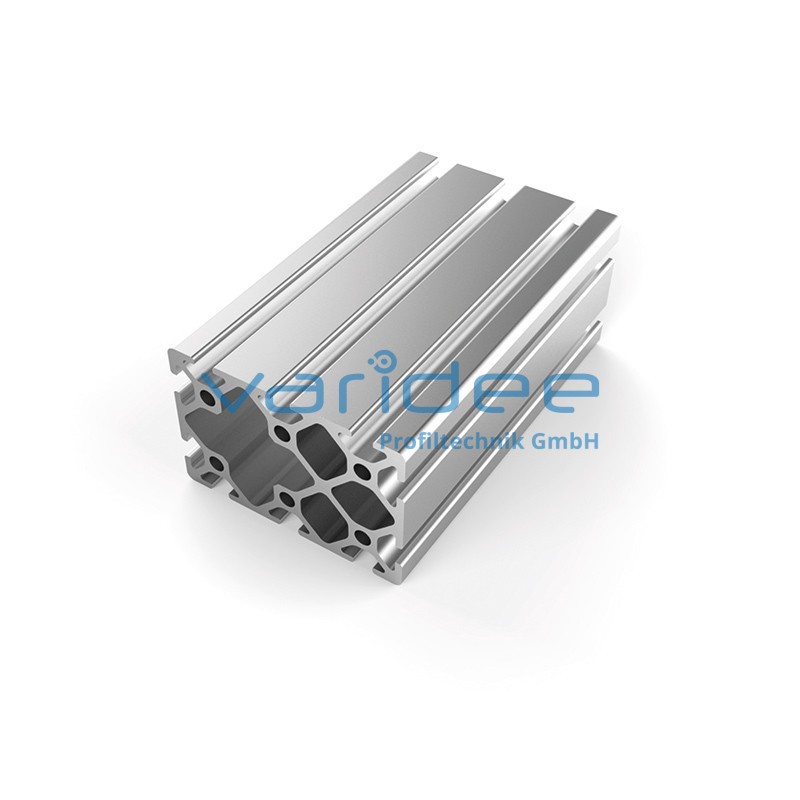

Profile 5 60x40 (6 meters)
P5-60x40-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 7.67 cm2, Wx = 6.76 cm3, Wy = 9.09 cm3, Ix = 13.52 cm4, Iy = 28.14 cm4, It = 8.15 cm4
Length: 6000 mm
m = 2.07 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 7.67 cm2, Wx = 6.76 cm3, Wy = 9.09 cm3, Ix = 13.52 cm4, Iy = 28.14 cm4, It = 8.15 cm4
Length: 6000 mm
m = 2.07 kg/m
The small structure of profile 5 makes them especially suitable for smaller and weight-optimized applications. The T-slots are designed for screws sized M3 to M5. Also for series 5 the focus is on functionality of modular design principle.
