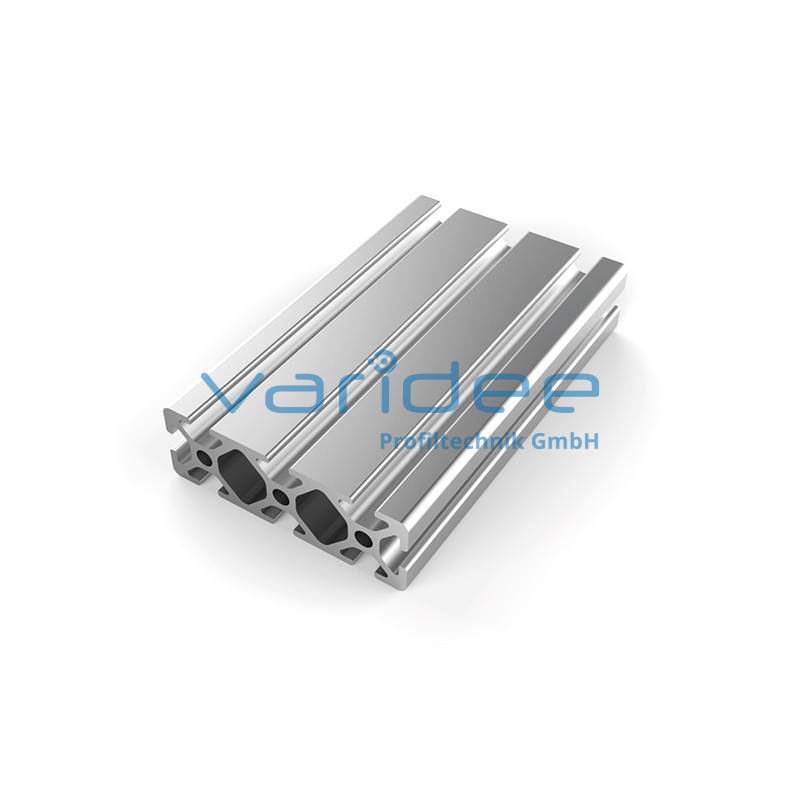

Profile 5 60x20 (3 meters)
P5-60x20-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 4.76 cm2, Wx = 2.06 cm3, Wy = 5.36 cm3, Ix = 2.06 cm4, Iy = 16.09 cm4, It = 1.54 cm4
Length: 3000 mm
m = 1.28 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 4.76 cm2, Wx = 2.06 cm3, Wy = 5.36 cm3, Ix = 2.06 cm4, Iy = 16.09 cm4, It = 1.54 cm4
Length: 3000 mm
m = 1.28 kg/m
The small structure of profile 5 makes them especially suitable for smaller and weight-optimized applications. The T-slots are designed for screws sized M3 to M5. Also for series 5 the focus is on functionality of modular design principle.
