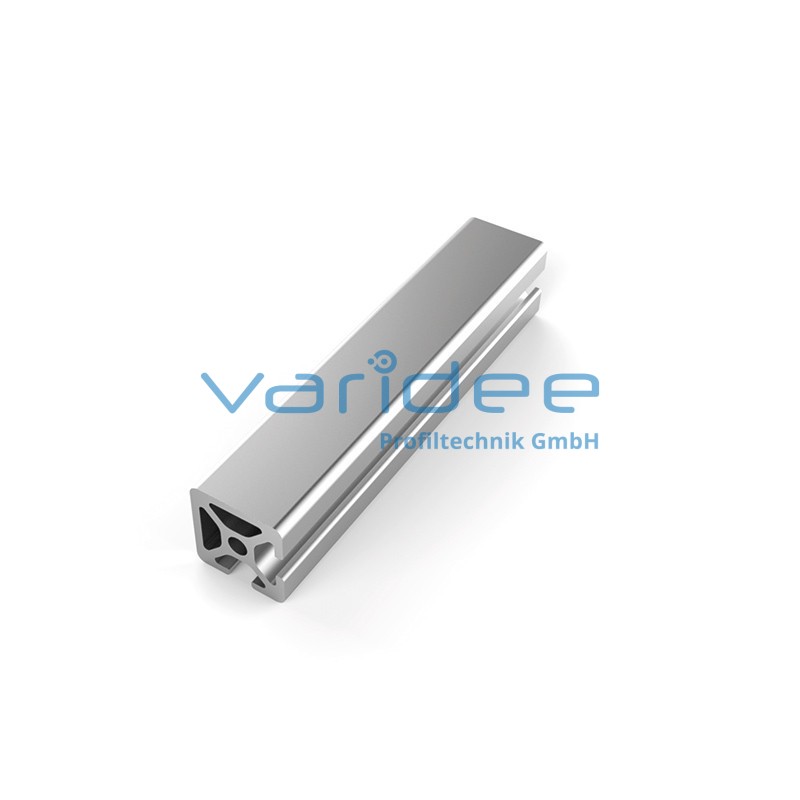

Profile 5 20x20 2N90 (cut)
P5-20x20-2N90-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 1.91 cm2, Wx = 0.76 cm3, Wy = 0.76 cm3, Ix = 0.78 cm4, Iy = 0.78 cm4, It = 0.42 cm4
Cut max.: 3000 mm
Saw Cut Type A
m = 0.54 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 1.91 cm2, Wx = 0.76 cm3, Wy = 0.76 cm3, Ix = 0.78 cm4, Iy = 0.78 cm4, It = 0.42 cm4
Cut max.: 3000 mm
Saw Cut Type A
m = 0.54 kg/m
The small structure of profile 5 makes them especially suitable for smaller and weight-optimized applications. The T-slots are designed for screws sized M3 to M5. Also for series 5 the focus is on functionality of modular design principle.
