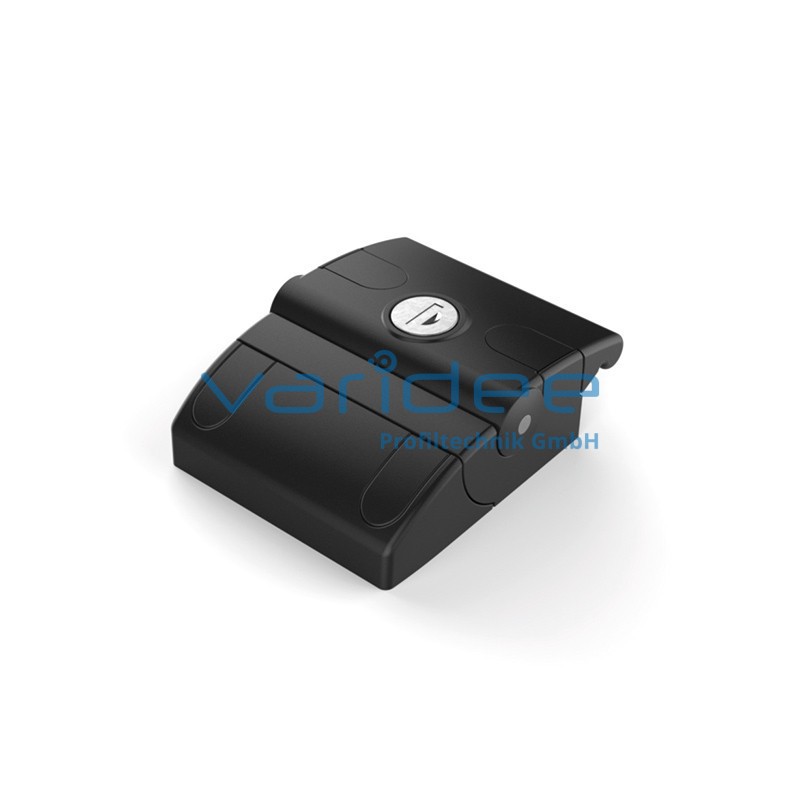

Door lock compact with lock
FV-8-KOM
Consists of:
Cylinder lock, keyed alike
Lock housing, GD-Al, black
Lock case, GD-Al, black
Caps PA-GF, black
2 Keys
m = 246.0 g
Cylinder lock, keyed alike
Lock housing, GD-Al, black
Lock case, GD-Al, black
Caps PA-GF, black
2 Keys
m = 246.0 g
The door lock compact is a lock system that is screwed onto door frames and cases. An integrated lock enables the latch bolt to be locked. A door gap of 1-3 mm must be provided for installation. Fixing to the profile groove can be done without drilling or other mechanical processing. The door lock compact is screwed from the front using screws and T-slot nuts. By attaching caps, the door lock compact is secured against disassembly when closed.
