Rollenbahn Al Aufnahme D30 mit Anschlag H43
  • Rollenbahn Al Aufnahme D30 mit Anschlag H43
  • Rollenbahn Al Aufnahme D30 mit Anschlag H43

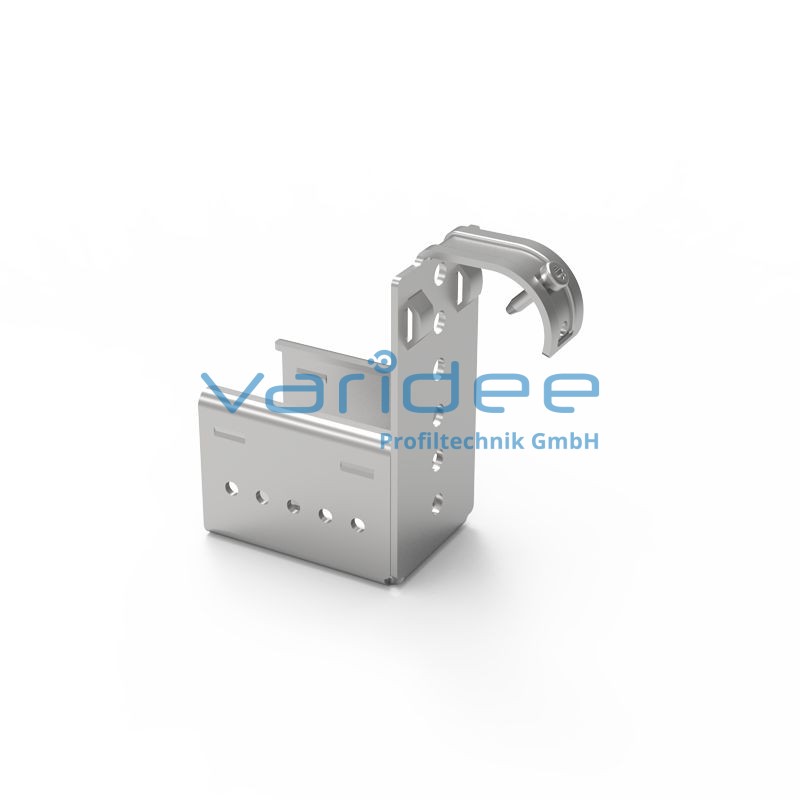

Roller Conveyor Al, Fastening Bracket D30 with Stop H43

RS8-AL-AN-D30-MA
Consists of:
Castor conveyor Al fixture D30 with stop H43, St, galvanized
Button-head screw self-drilling DIN 7504 3,9x16, St galvanized
Cap screw M5x14, St, galvanized
Washer M5, St, galvanized
T-slot nut 8 StM5, galvanized
m = 205.5 g

The roller conveyor Al fastening bracket D30 with stop offers the possibility of attaching castor rails 8 40x40 at any angle to racks made of profile tubes D30. This variant also works as suspension and stop H = 43 mm at the same time. With the help of the stop, transport goods or workpiece containers are stopped automatically at the end of the conveyor line. The fastening bracket can be fixed and secured with included drilling screws. Furthermore, a fitting fastening set M5 is included to assemble the fastening bracket at the castor rails.
