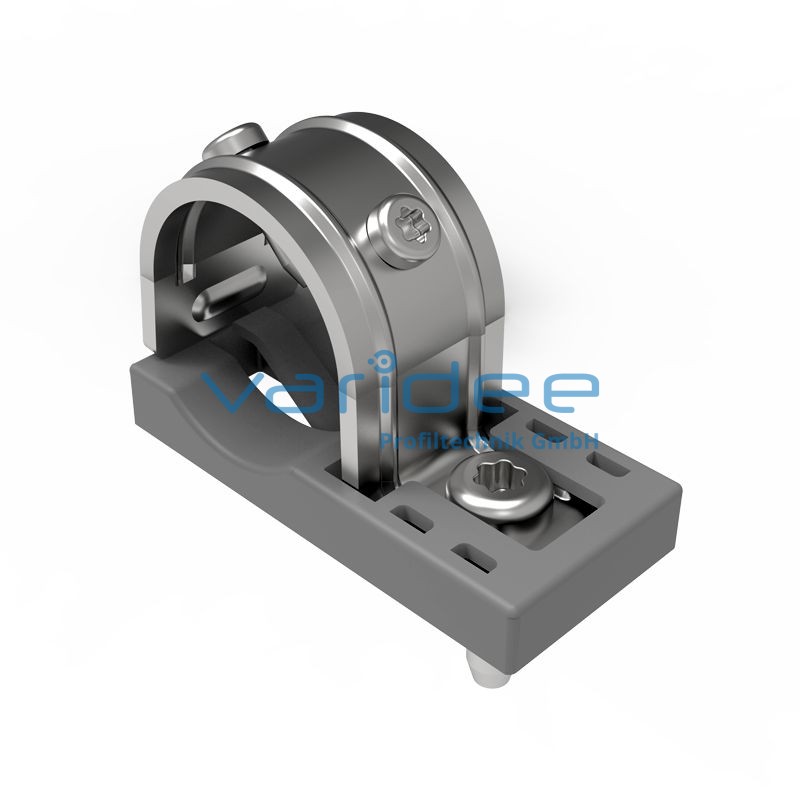

Table-top fastening set D30
TPB-D30
Consists of:
Clamp, St, galvanized
Spacer, PA-GF, grey
2 Pan head screws, self drilling, 3,9x16, TX20, St, galvanized
Pan head screw, 6x25, TX30, St, galvanized
m = 55.0 g
Clamp, St, galvanized
Spacer, PA-GF, grey
2 Pan head screws, self drilling, 3,9x16, TX20, St, galvanized
Pan head screw, 6x25, TX30, St, galvanized
m = 55.0 g
With the table-top fastening set D30 chipboard or multiplex panels can be assembled easily and securely to constructions from profile tubes D30. By using this component, the surface elements to be mounted rest directly on the fasteners of the substructure. This ensures a flush support and prevents wobbling. With the self-drilling screws included in the scope of supply the table-top fastening can additionally be fixed to the profile tube D30. The attached pan head screw M6x25 for plate bolting fits for plate thicknesses of at least 25 mm. To cover the gap between profile tube and tabletop, a slide strip D30, grey can be used.
