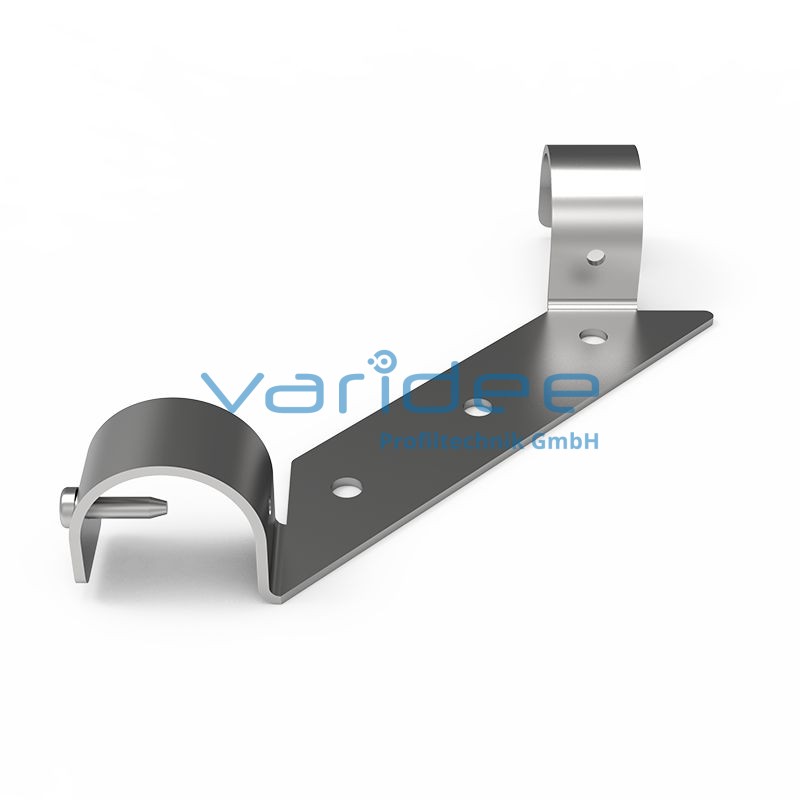

Table-top fastening bracket D30 St, galvanized
TPE-ST-D30
Consists of:
Table top suspension strut, St, galvanized
2 Pan head screws, self drilling, 3,9x16, TX20, St, galvanized
m = 93.0 g
Table top suspension strut, St, galvanized
2 Pan head screws, self drilling, 3,9x16, TX20, St, galvanized
m = 93.0 g
The table-top fastening bracket D30 offers the possibility to mount table tops, shelves or any surface elements. A suspension is inserted in each corner of a frame made of D30 profile tubes and fixed using the self-drilling pan head screws (TX20) included in the scope of delivery. A circumferential gap of 5 mm each must be provided for the surfaces to be inserted. If necessary, the inserted panels can be additionally screwed from below. This gives the entire construction additional stability.
