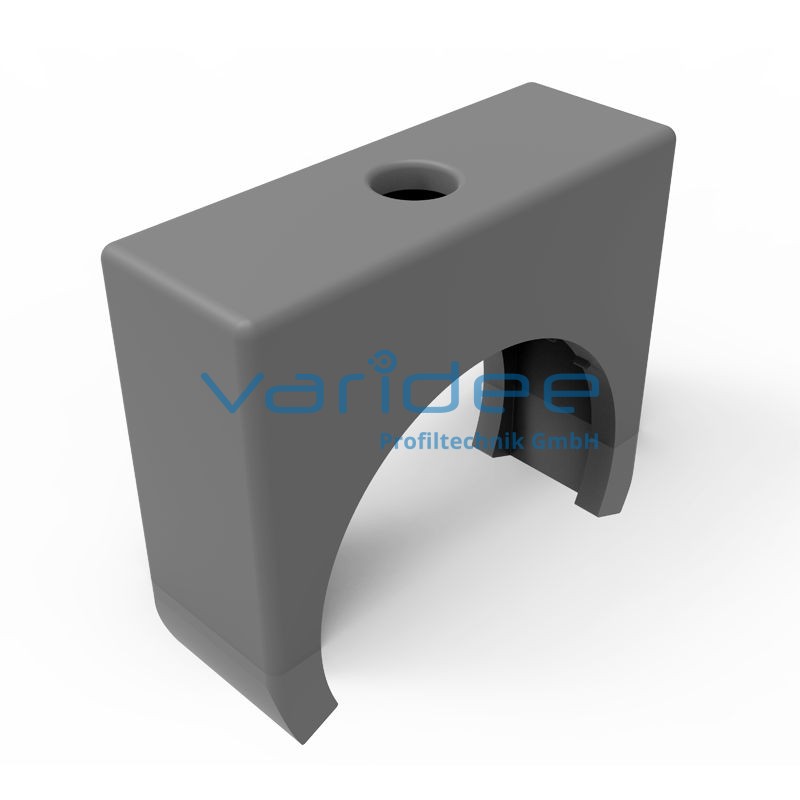

Tube clamp D30, grey
KSCH-D30-G
Material: PA-GF
Color: traffic grey similar to RAL 7042
m = 7.5 g
Color: traffic grey similar to RAL 7042
m = 7.5 g
The tube clamp D30 enables a simple mounting of panels and lightweight attachments. The clamp can be clipped onto a tube D30 or profile tube D30 from the outside. A standard hexagon nut M5 can be used to screw the clamp to surfaces. The screw M5 (length) required for fixing is calculated from the plate thickness S + 10 mm.
