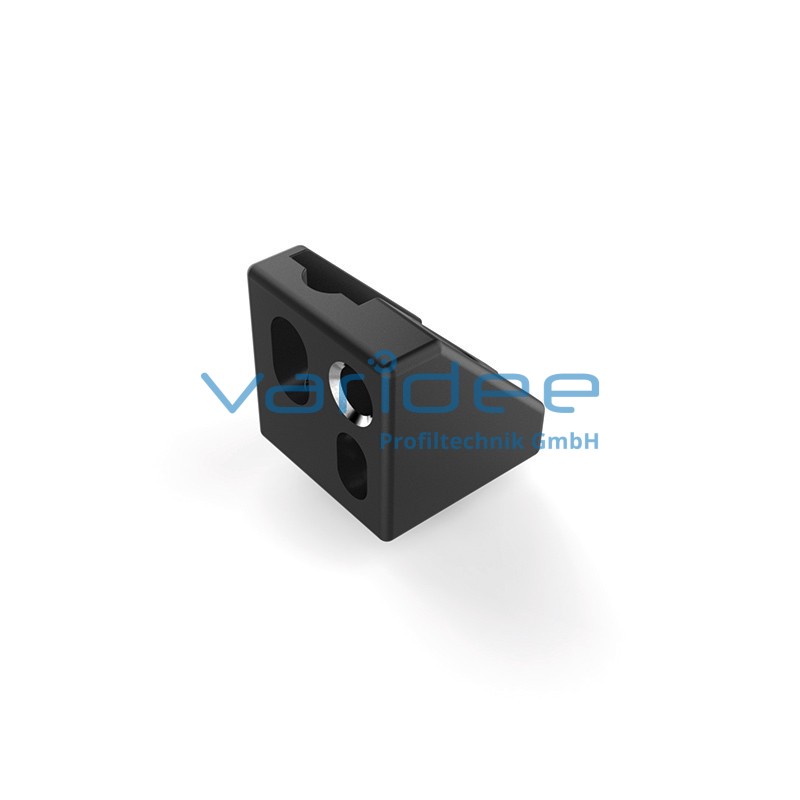

Multiblock 8 Zn
MB8-ZN-M6
Consists of:
Base body and notch, GD-Zn, black powder coated
Square nut DIN 557-M6, St, galvanized
Captive washer, PA, bright
Load: Fmax = 1000 N
m = 68.5 g
Base body and notch, GD-Zn, black powder coated
Square nut DIN 557-M6, St, galvanized
Captive washer, PA, bright
Load: Fmax = 1000 N
m = 68.5 g
The multiblock 8 Zn is used to attach surfaces to the profile groove. The Zn variant is designed for high loads up to Fmax = 1000 N. The Multiblock Zn is attached to the profile groove by button-head screw M8x18 and T-slot nut 8 St M8. The supplied notch allows different installation heights. A through-hole or square nut is optionally available for fastening the panel element.
