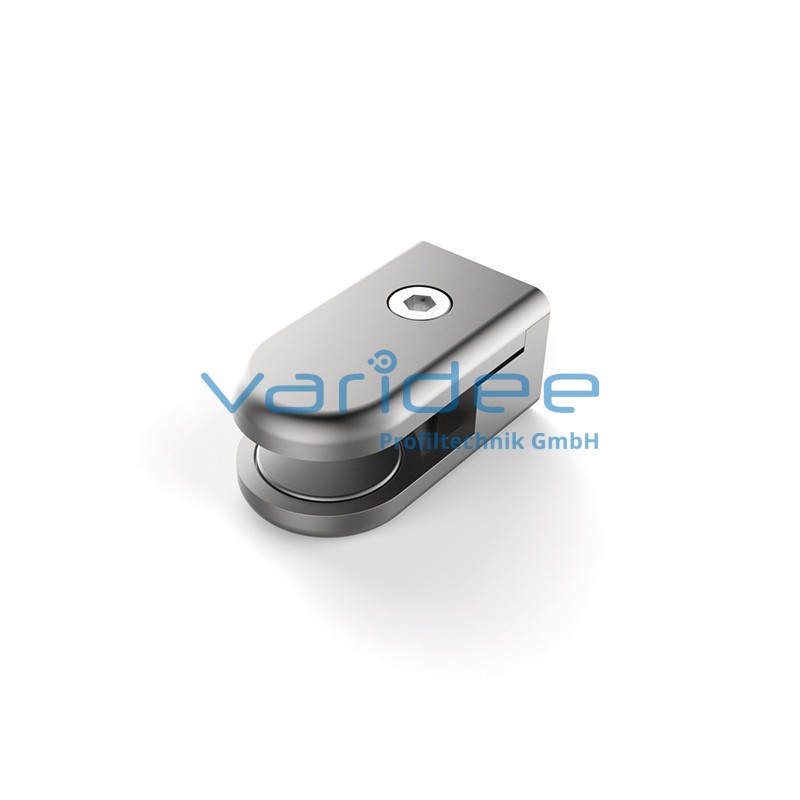

Glass panel bracket 8
GSH-8
Consists of:
2 Housing halves, GD-Zn, aluminum color powder coated
Rubber plates, NBR, black
Screw M5x16, St, galvanized
Load: Fmax = 50 N
m = 74.0 g
2 Housing halves, GD-Zn, aluminum color powder coated
Rubber plates, NBR, black
Screw M5x16, St, galvanized
Load: Fmax = 50 N
m = 74.0 g
With the glass panel bracket panel elements from 2 - 10 mm thickness can be attached to the profile groove without additional processing. By tightening the clamping screws the glass panel bracket and the panel element are fixed. This type of fixing is particularly suitable for frameless panes.
