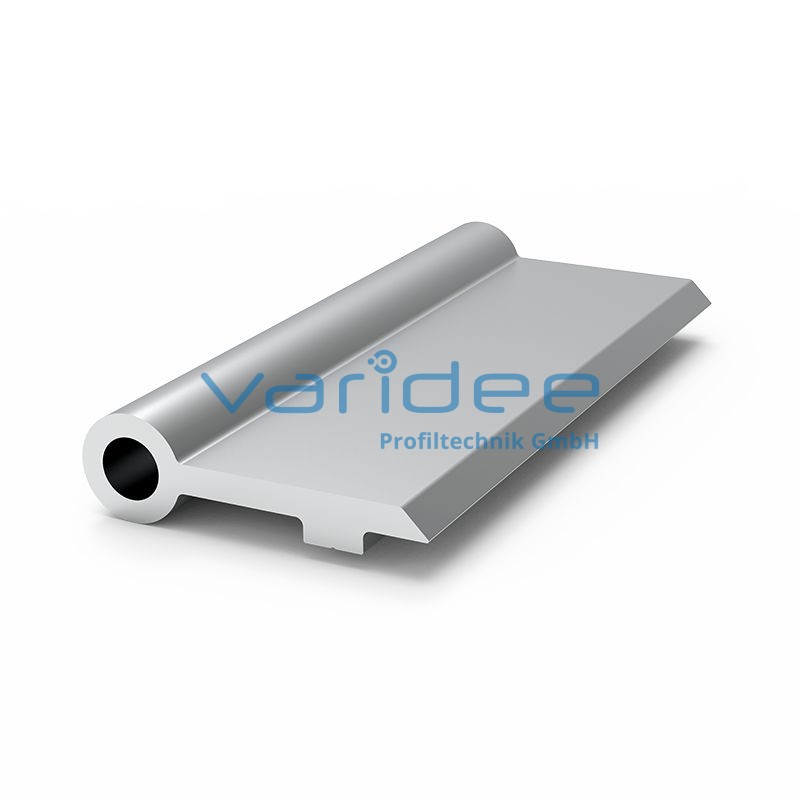

Hinge leaf profile V8 z light (3 meters)
SLP-V8Z-L-S3
Material: Aluminum, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
A = 2.46 cm2
Length: 3000 mm
m = 0.66 kg/m
Surface: anodized, A6, C0
Color: natural color
A = 2.46 cm2
Length: 3000 mm
m = 0.66 kg/m
Hinge leaf profiles enable the individual design of hinges. The length of the hinge leaves can be freely selected and the gap between the frame and door leaf can be completely closed. M6 countersunk holes can be drilled into the hinge flap profiles. A notch on the back of the hinge marks the position of the fixing hole. The hinge Al light, bolt set D6, which can be ordered separately, can be used as a hinge bolt.
