Scharnier 8 40 Al Satz
  • Scharnier 8 40 Al Satz
  • Scharnier 8 40 Al Satz

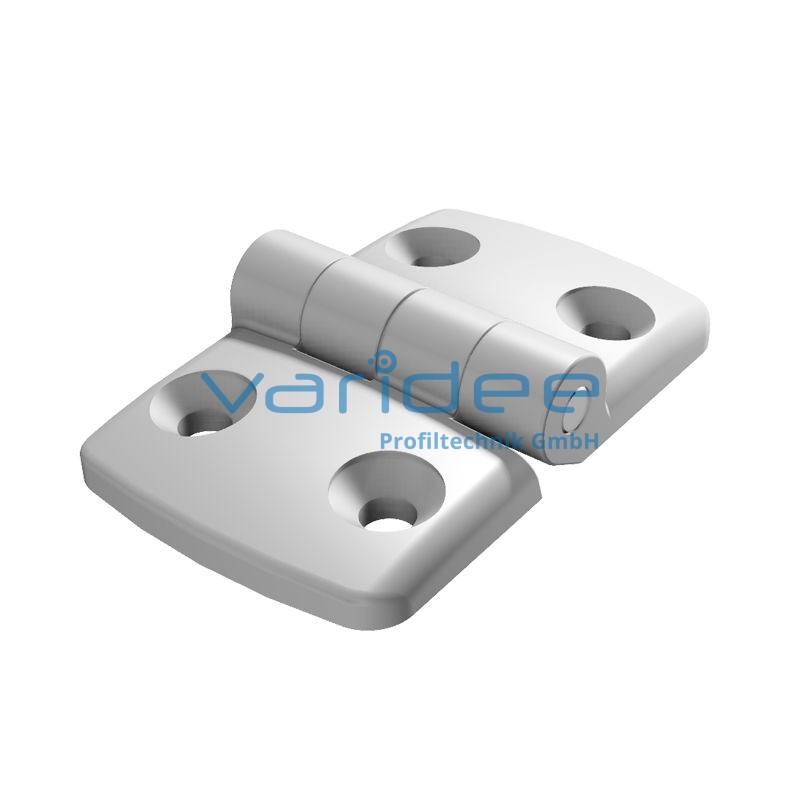

Hinge 8 40 Al Set

SCH-40-AL-SZ
Consists of:
Hinge 8 40 Al, GD-Al, matt nickel-plated and chromated
4 Countersunk screws M6x18, St, galvanized
4 T-slot nuts 8 St M6, galvanized
2 Groove fixings 8, PA-GF, black
Load: Fmax = 250 N
m = 127.0 g

The hinge 8 40 AL is a combination hinge and is suitable for doors and flaps with medium loads. The maximum load is 250 N per hinge. The scope of delivery includes groove fixings for secure connection to the profile groove 8 as well as the matching screws and T-slot nuts of series 8. The hole spacings are 45.0 mm and 28.0 mm. A circumferential door gap of 5.0 mm must be provided. The installation dimension is 77.0 mm x 48.0 mm.
