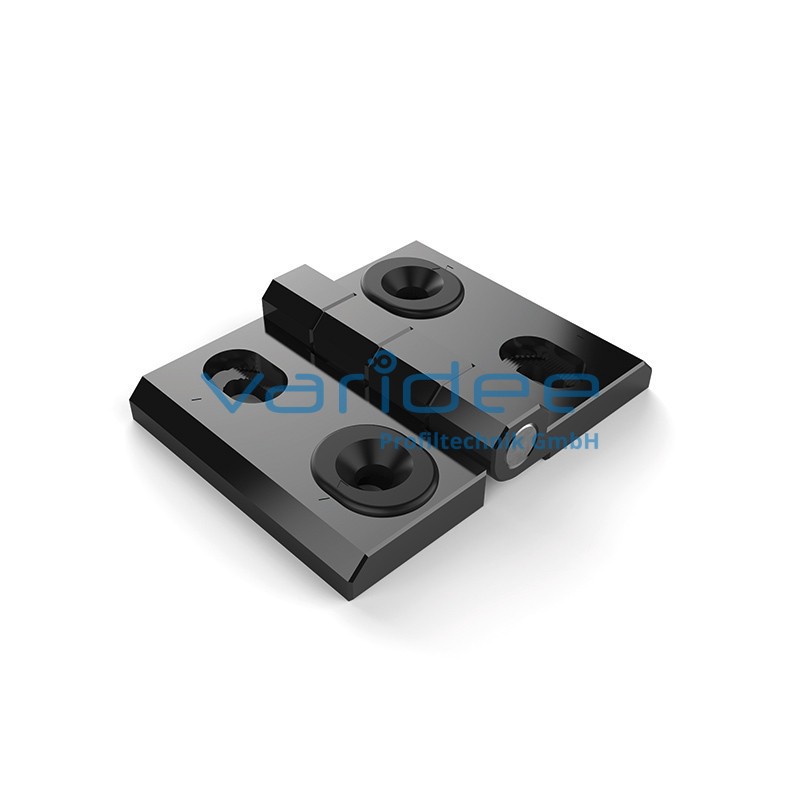

Hinge 2D 76x60 Zn, black
SCH8-2D-H
Adjustable in height
Hole spacing: 42 mm (width)
Hole spacing: 34-38 mm (height)
Consists of:
Hinge, GD-Zn, black, powder coated
Axle, stainless steel (A2)
Load: Fmax = 1200 N
m = 202.0 g
Hole spacing: 42 mm (width)
Hole spacing: 34-38 mm (height)
Consists of:
Hinge, GD-Zn, black, powder coated
Axle, stainless steel (A2)
Load: Fmax = 1200 N
m = 202.0 g
Hinges 2D are robust universally applicable hinges for flaps and doors with higher loads. The door gap can be individually adjusted in the range of 0-8 mm using the supplied adjustment washers. They are attached to the profile groove using separately orderable T-slot nuts and countersunk screws M6.
