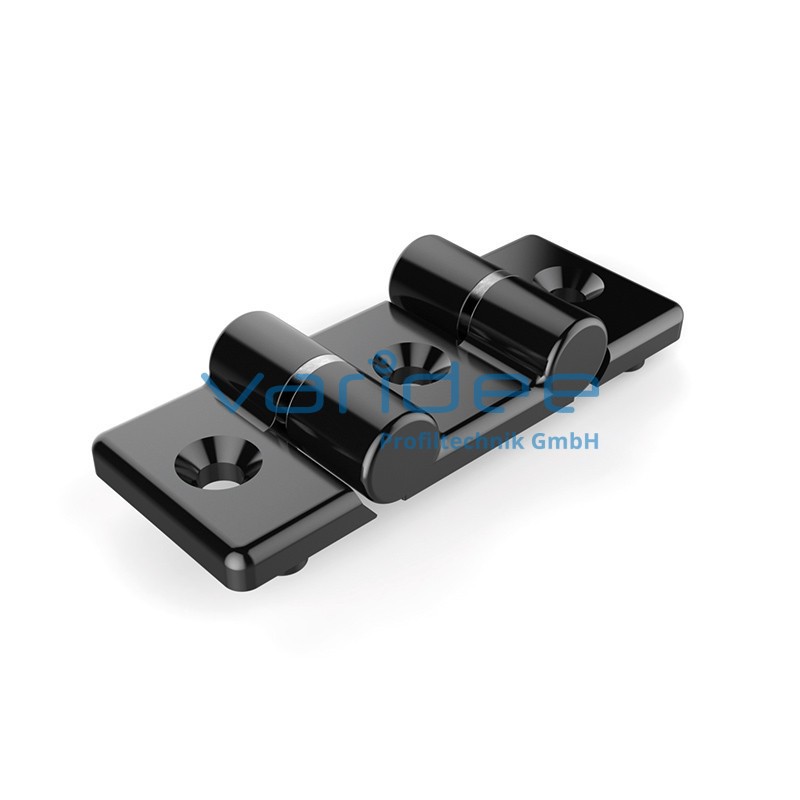

Double hinge 6 PA

DSCH6-PA
Consists of:
Double hinge, 6 PA-GF, black
2 Cylinder pins, St, galvanized
2 Washers, PA, black
Load: Fmax = 75 N
m = 25.0 g

Double hinges PA are well-suited for light doors and flaps. They are equipped with an anti-twist lock which is inserted into the profile groove. Surface elements which are fastened using double hinges PA have to be processed with through bores (for processing drawing see downloads). Door elements can be attached in such a way that they can be subsequently lifted out or permanently mounted. The hinge can be rotated 180°.
